Name: Stealth and Sushi Wheels
Brand: AndyMark
SKU: am-4592_green
Price: 5.4 USD
Availability: InStock
Rating: 4.81 (77 reviews)

Description
Specifications
Documentation

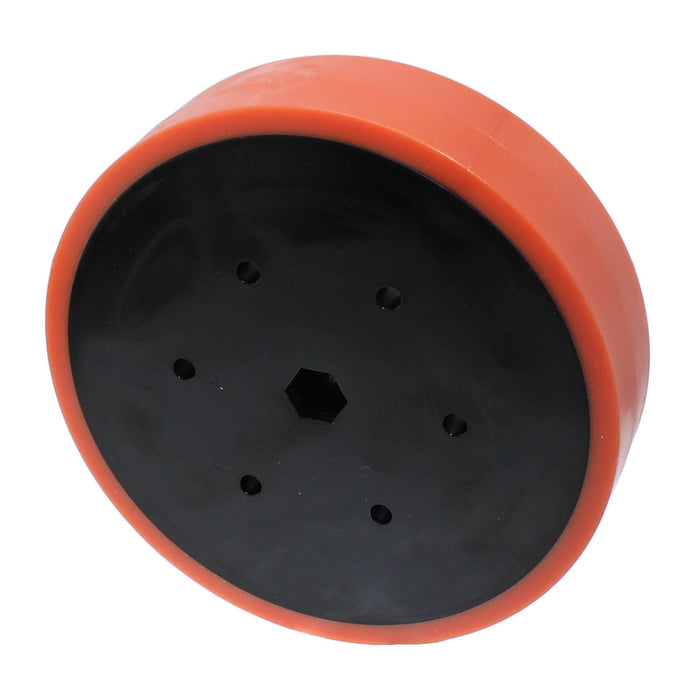

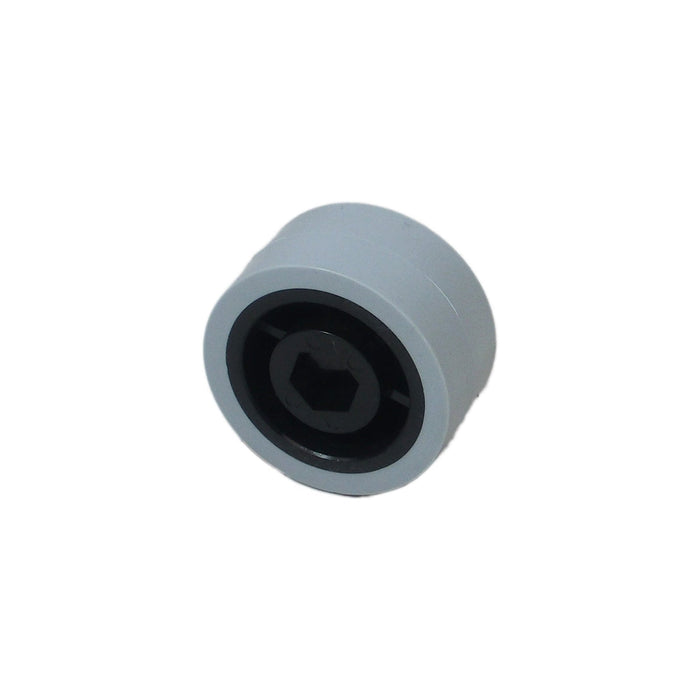

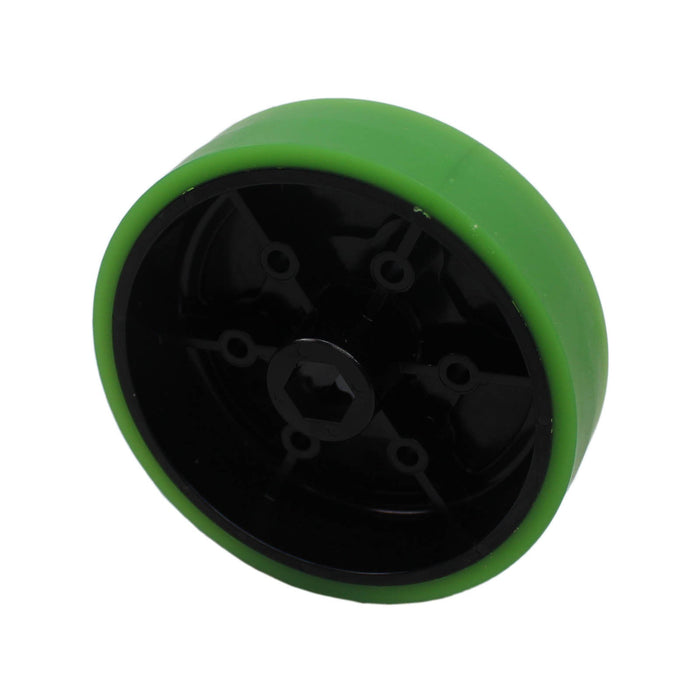

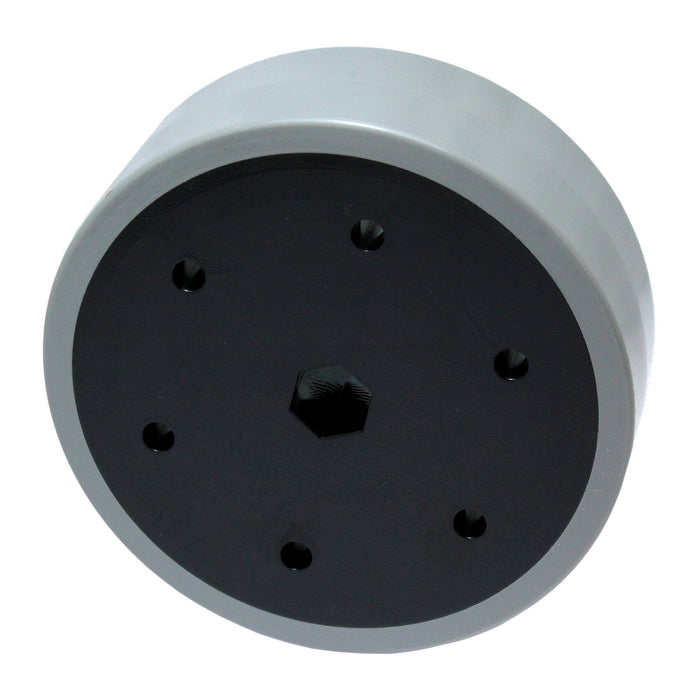

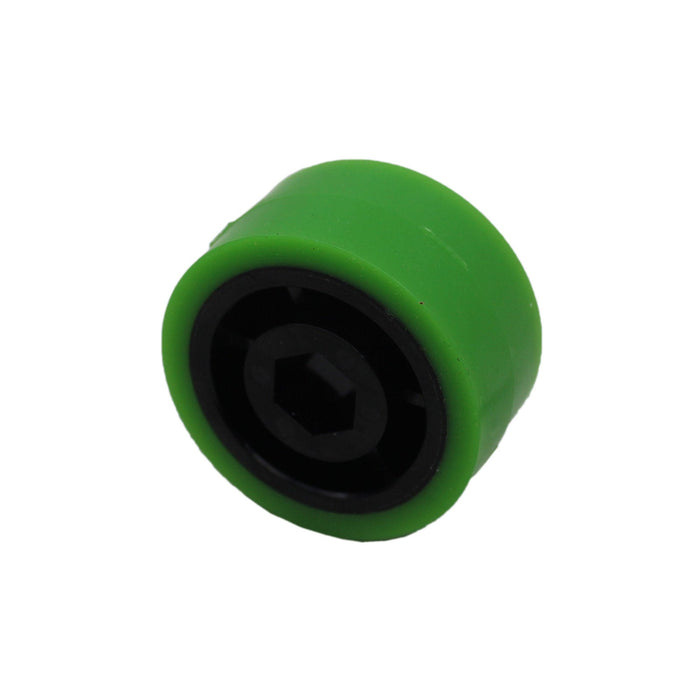

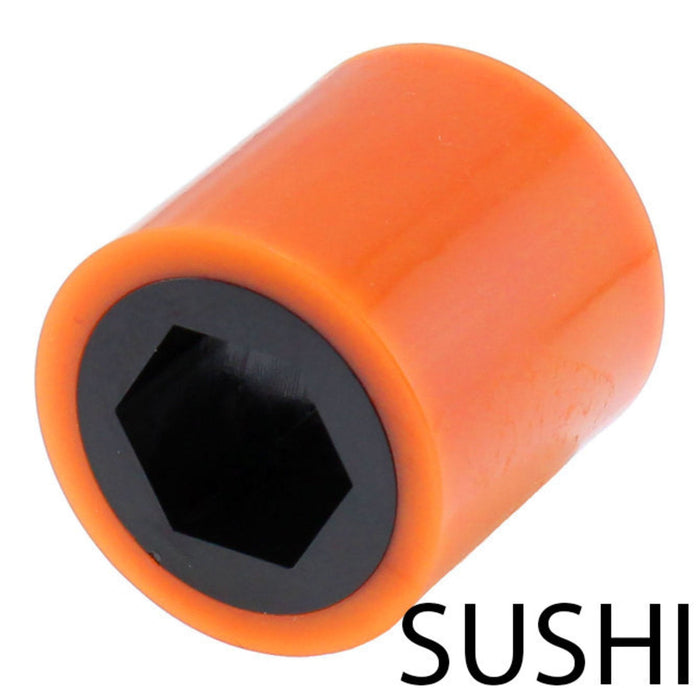

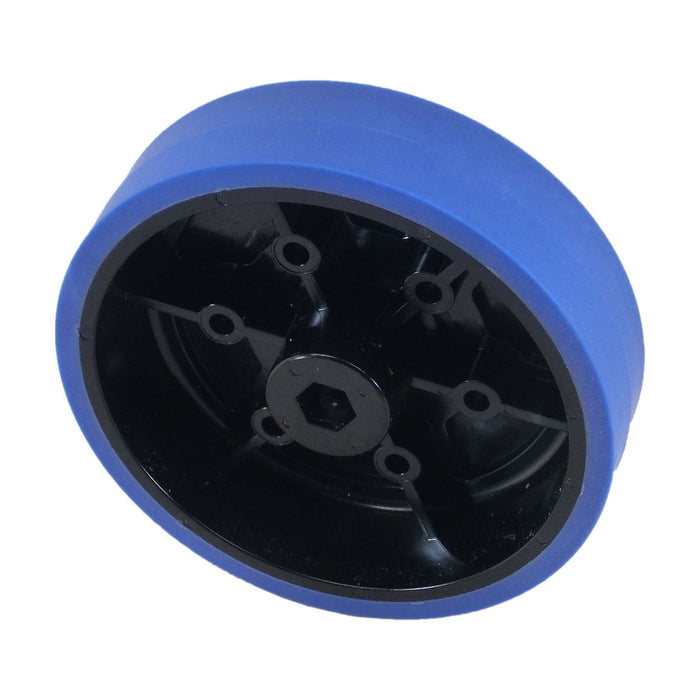

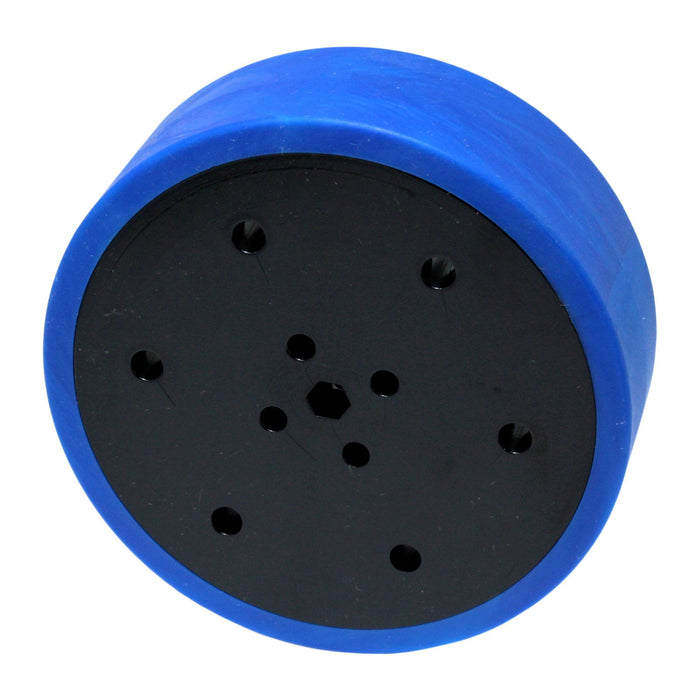

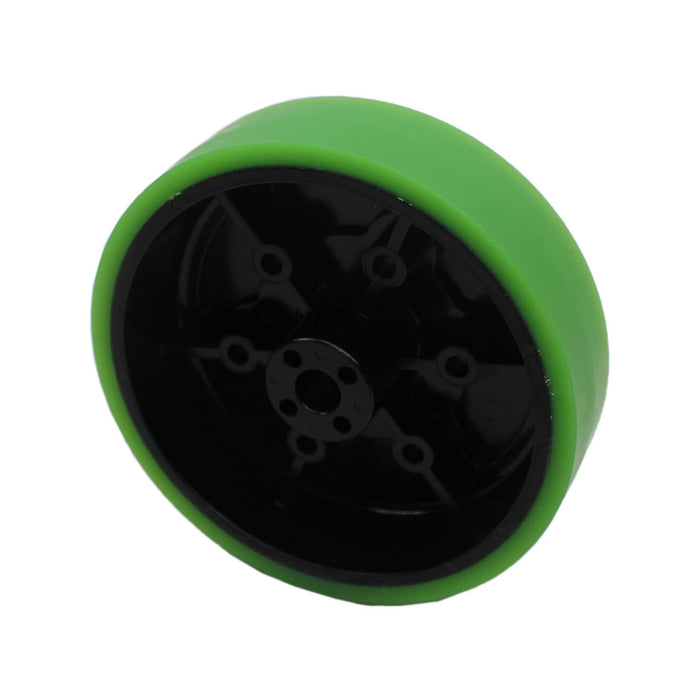

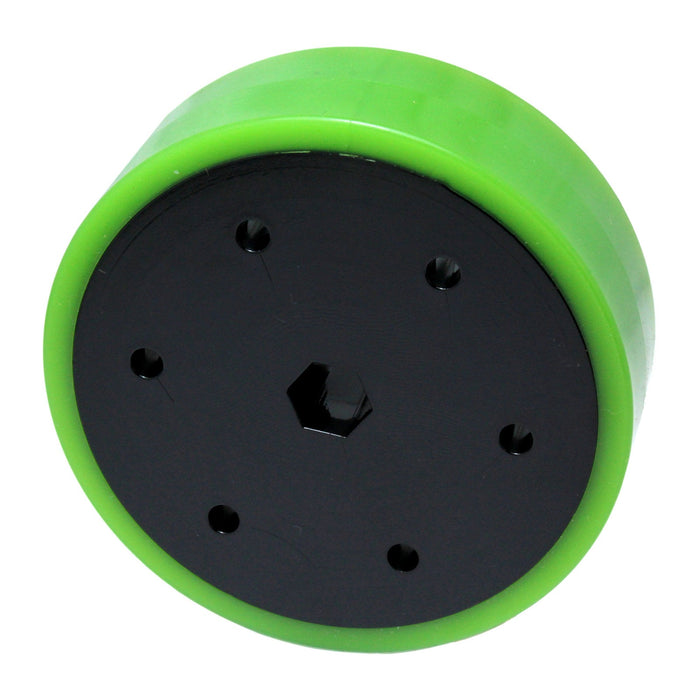

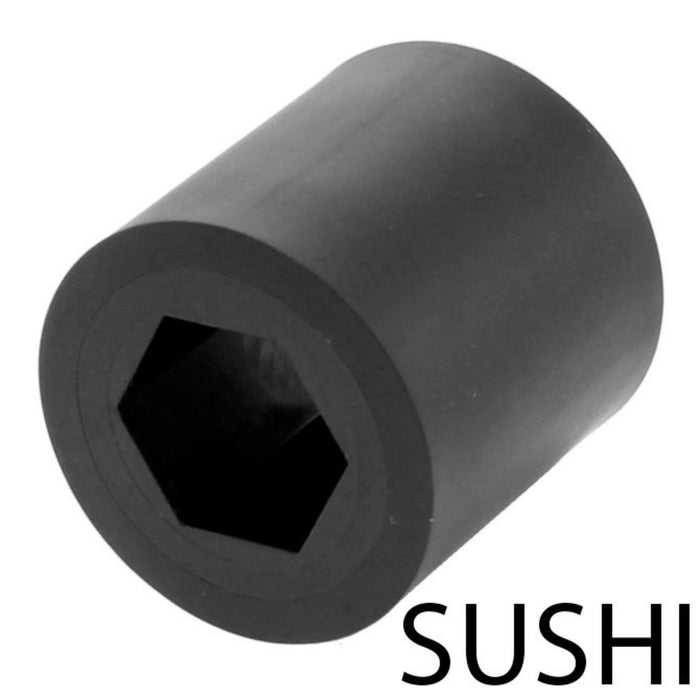

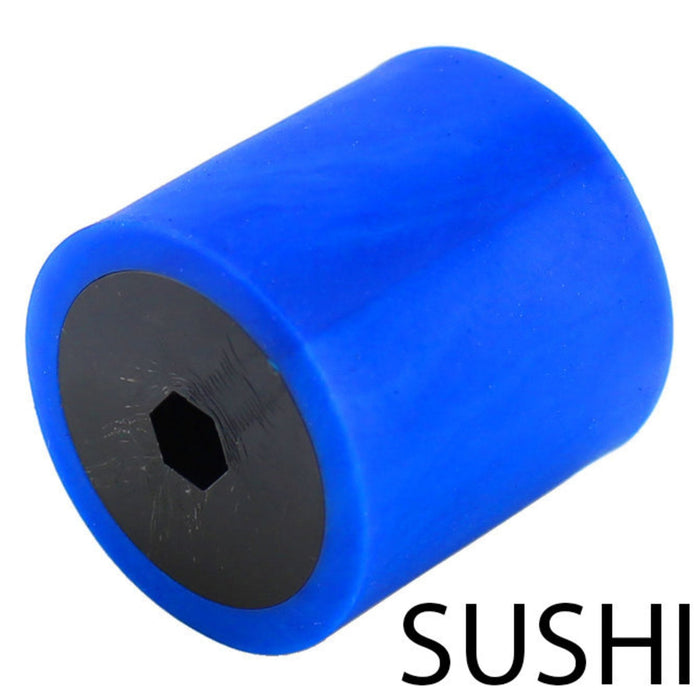

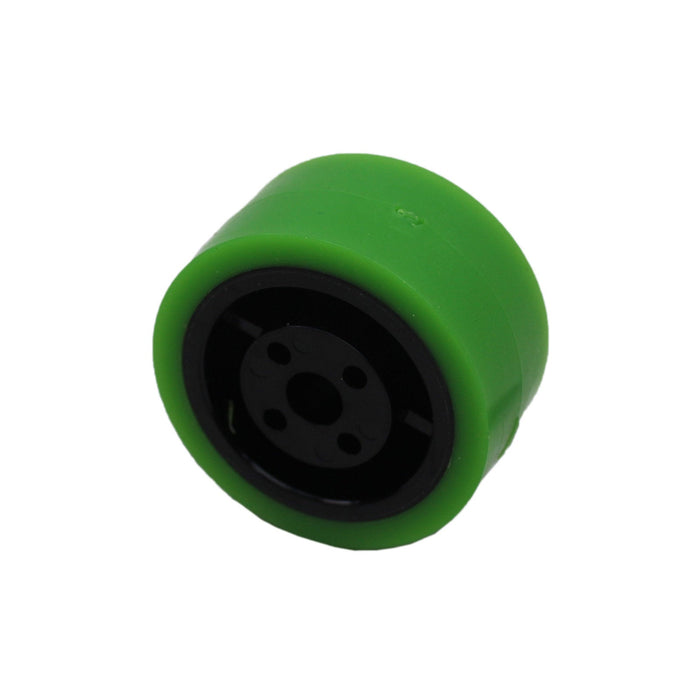

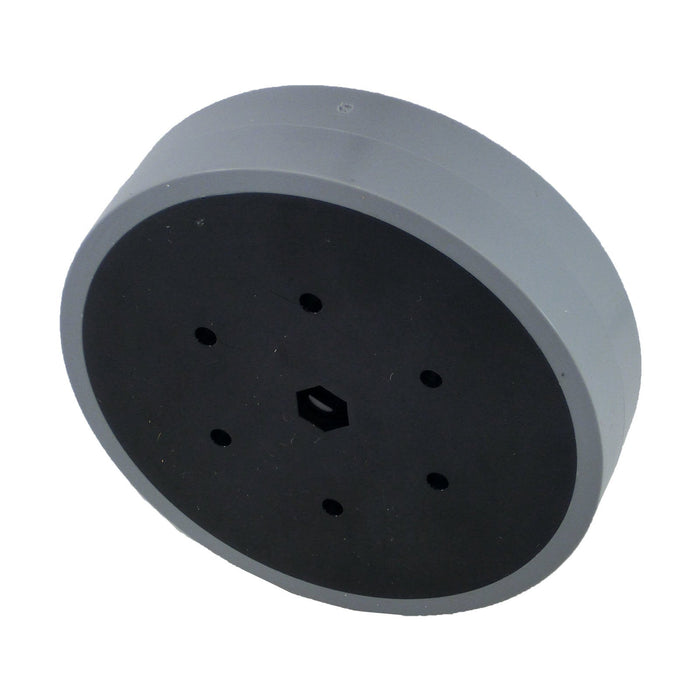

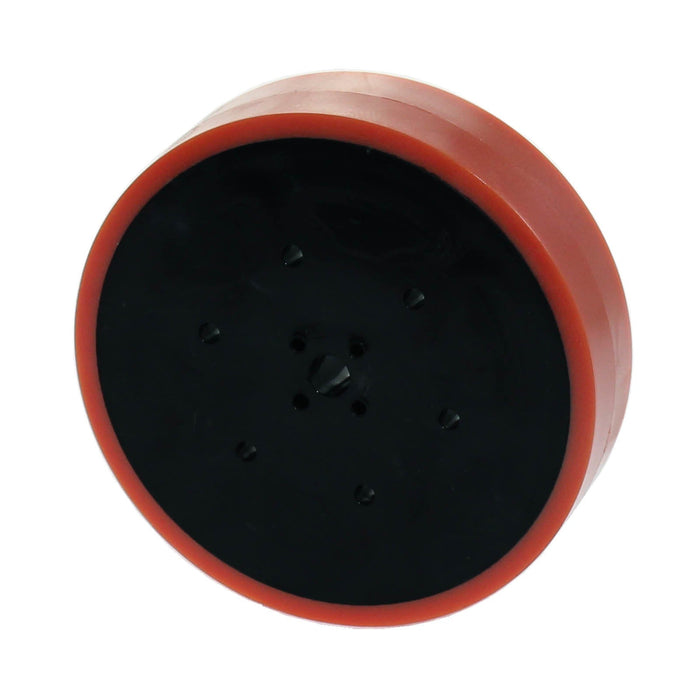

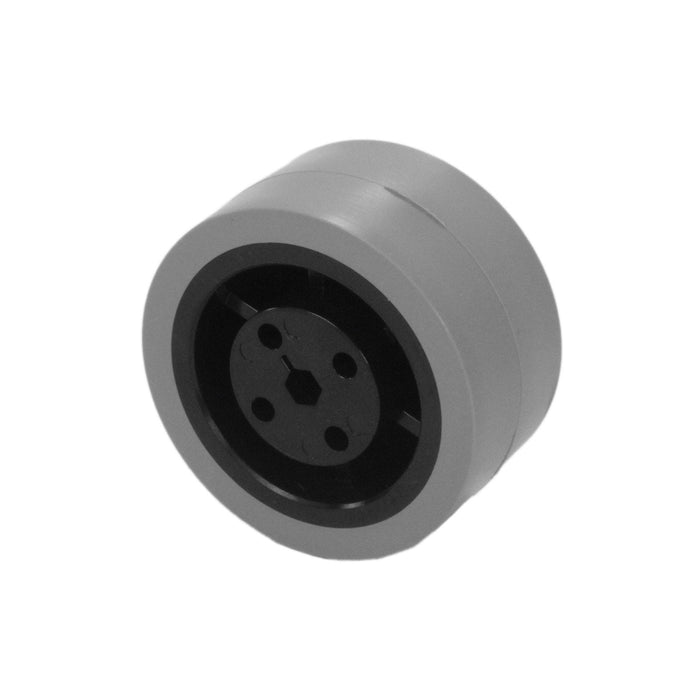

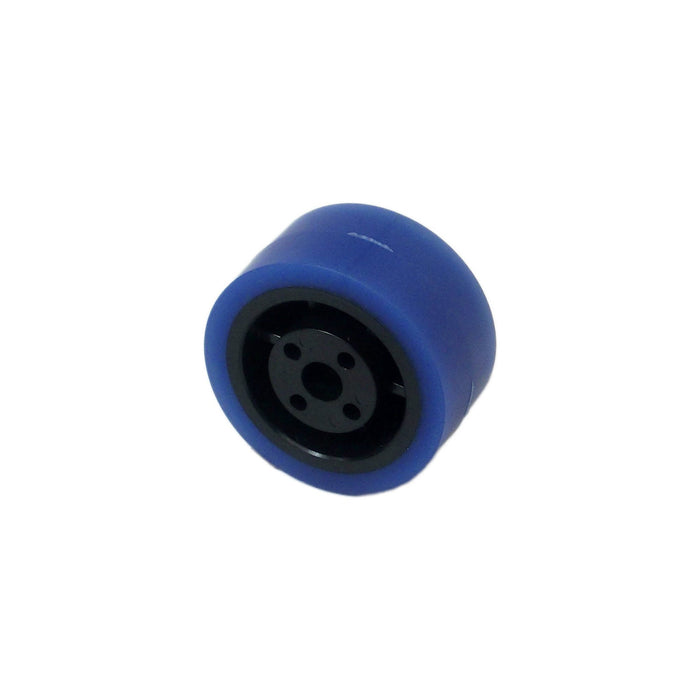

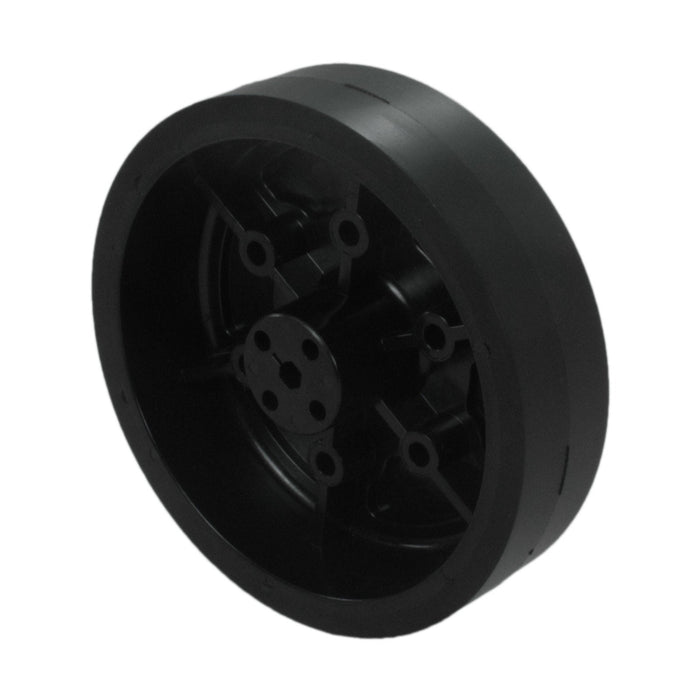

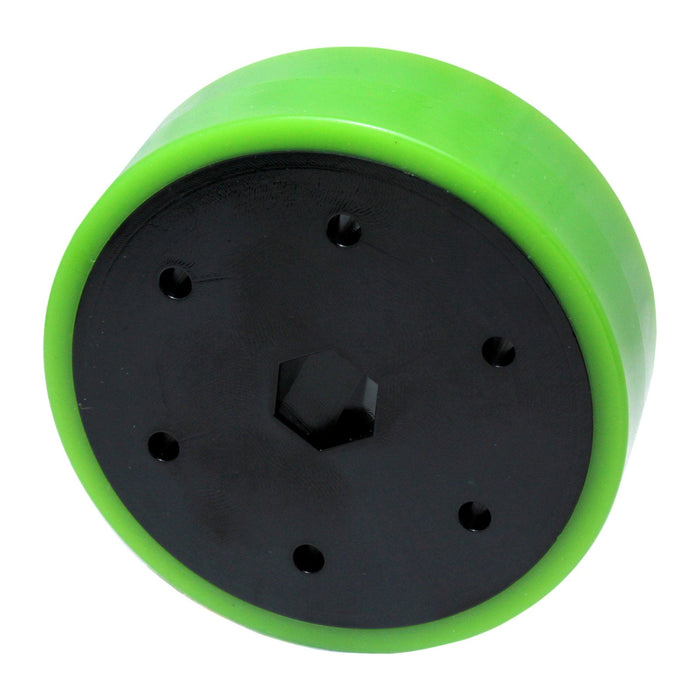

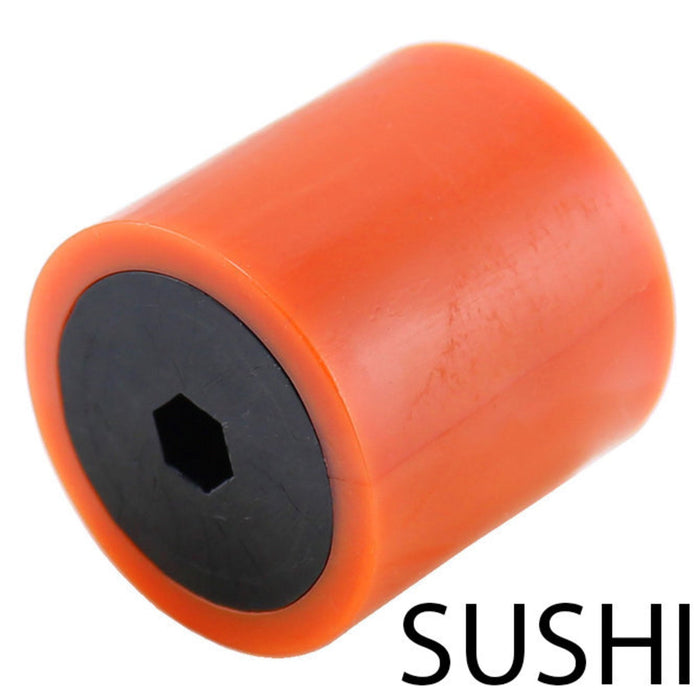

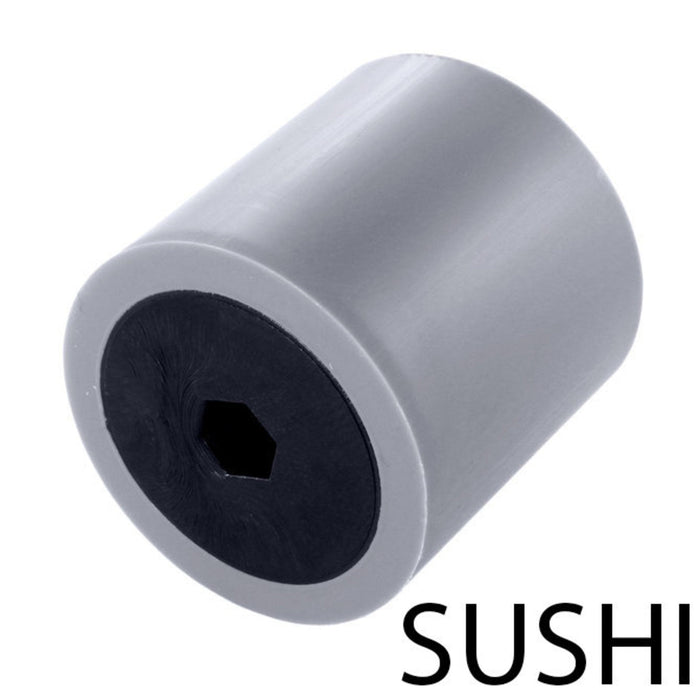

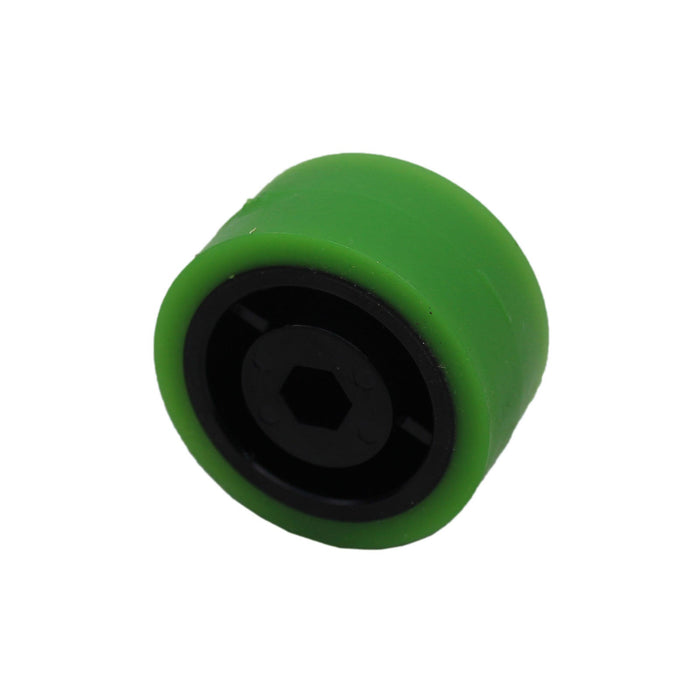

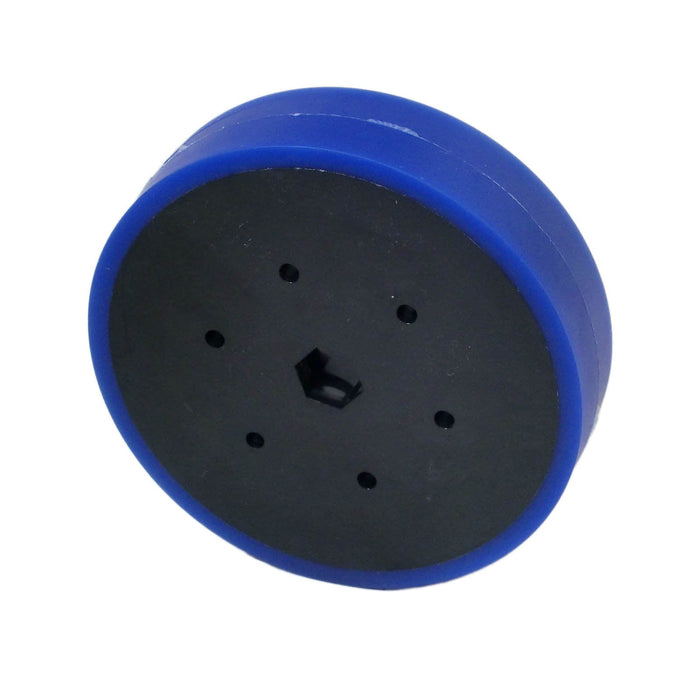

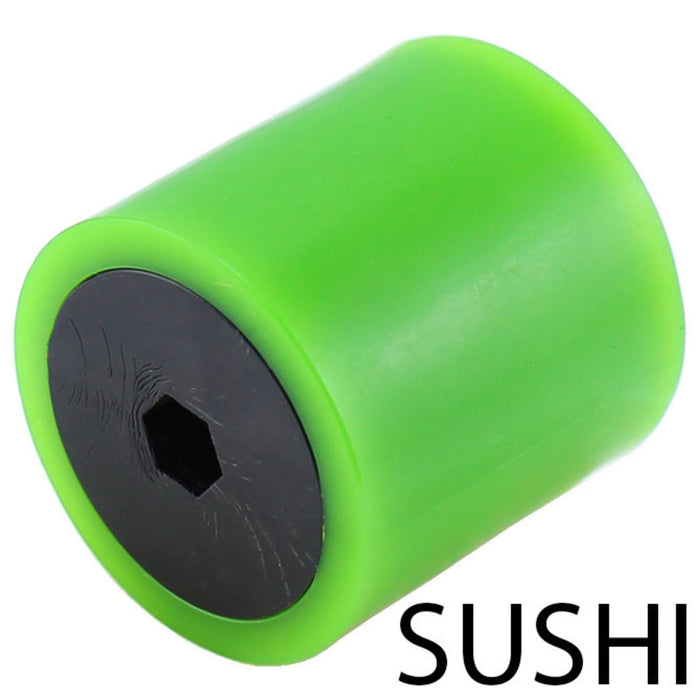

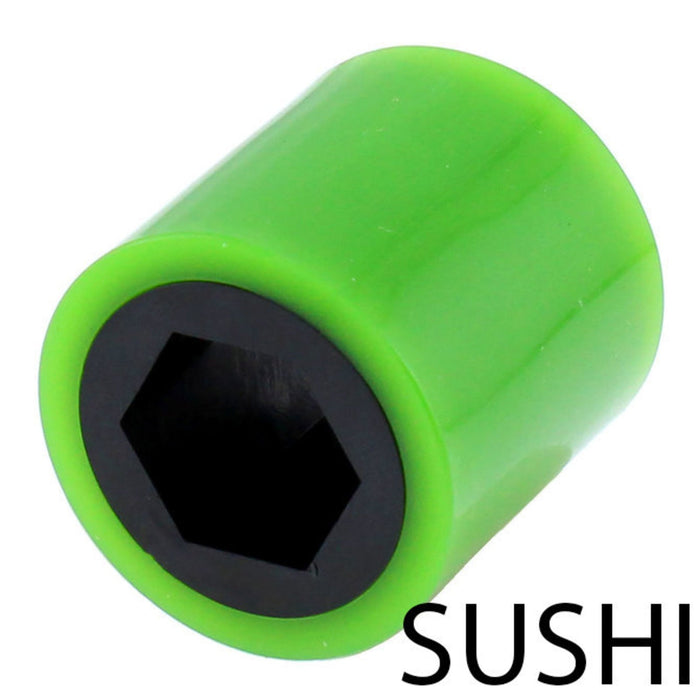

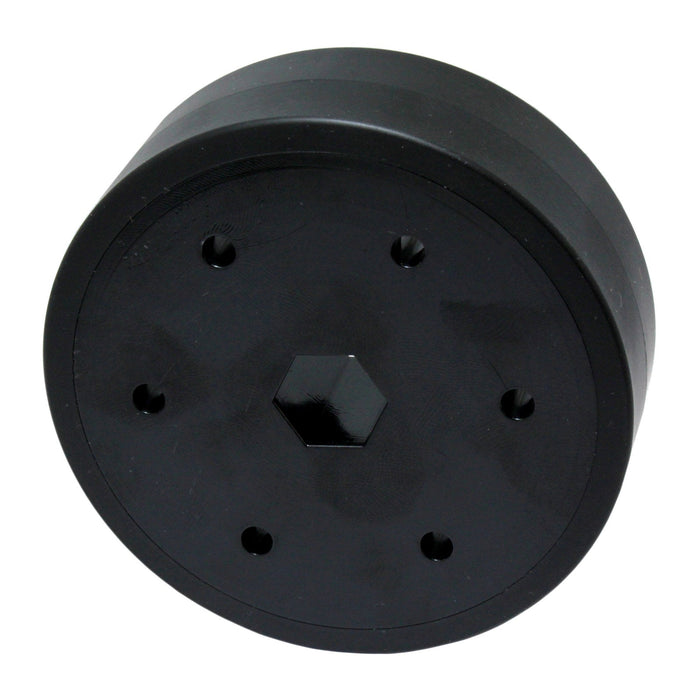

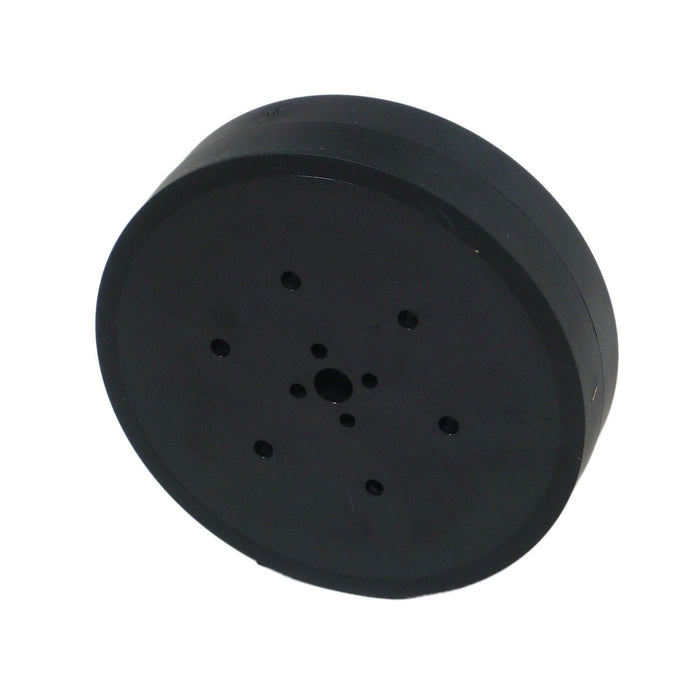

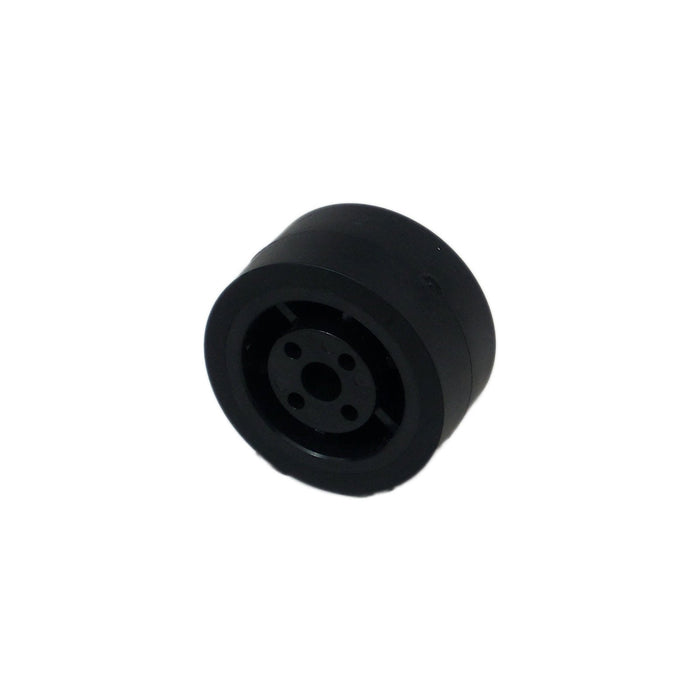

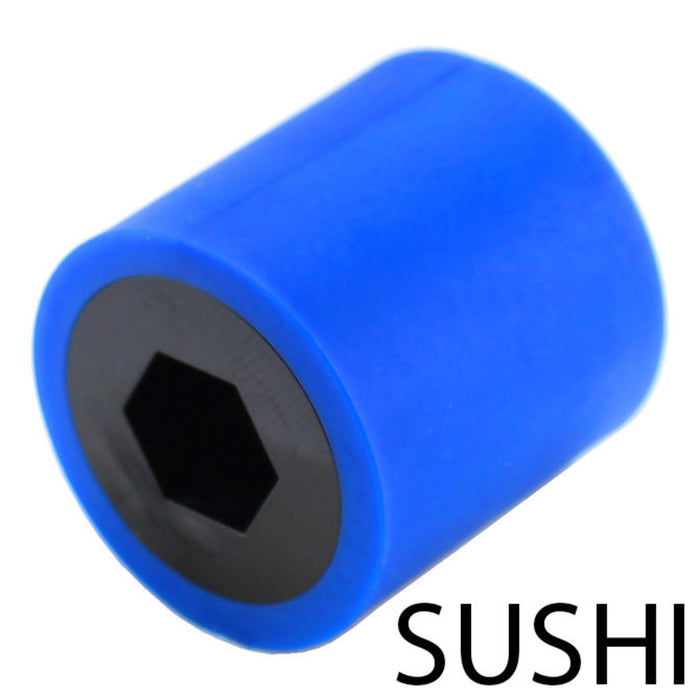

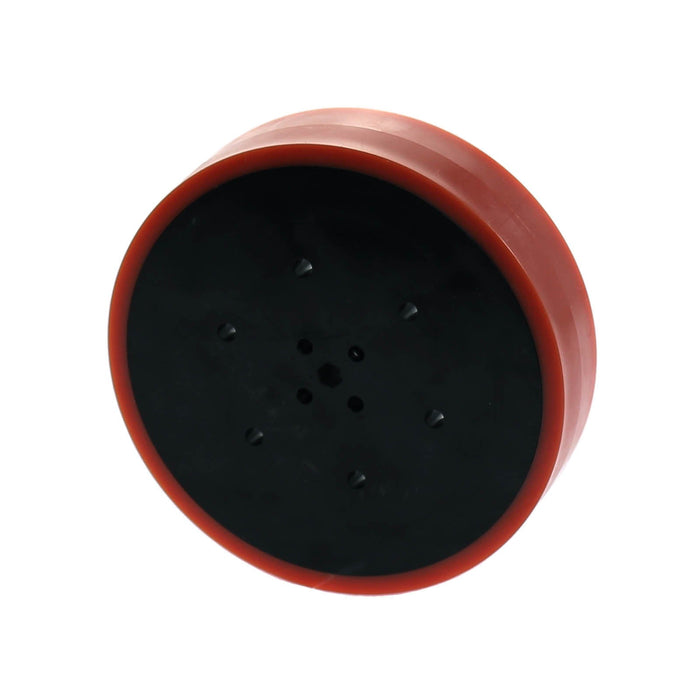

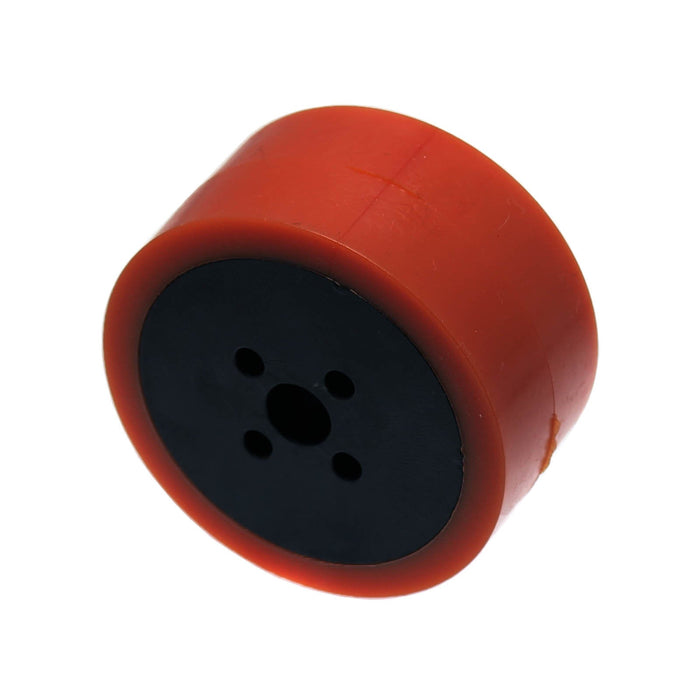

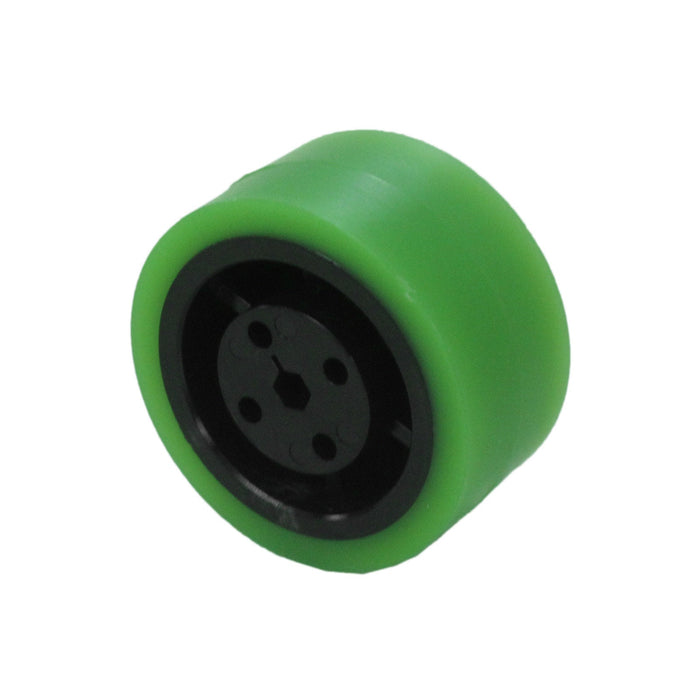

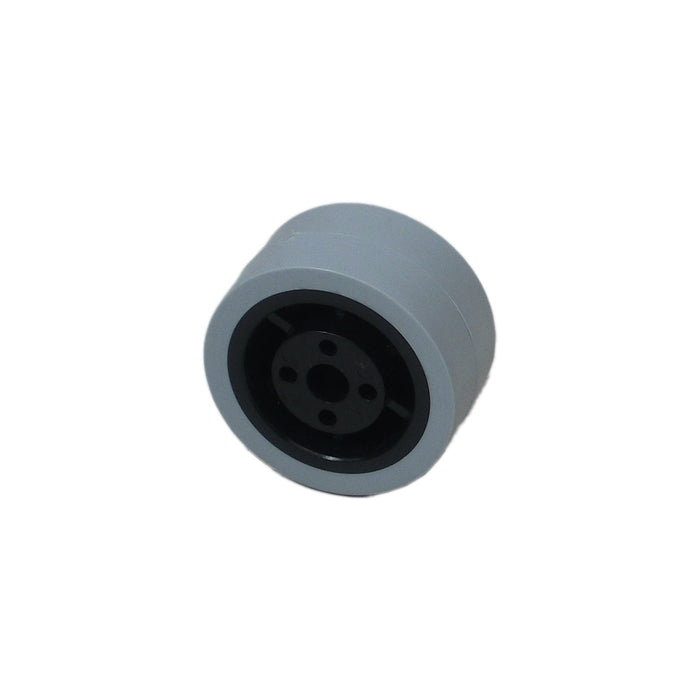

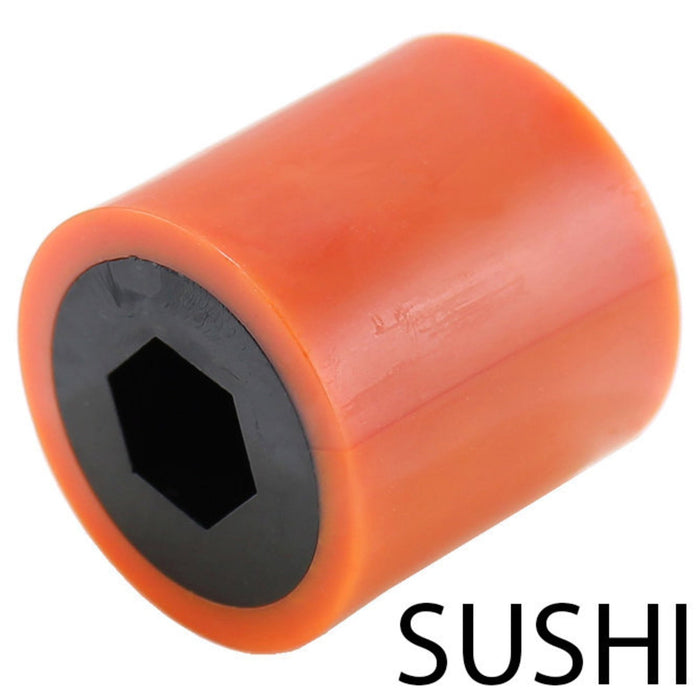

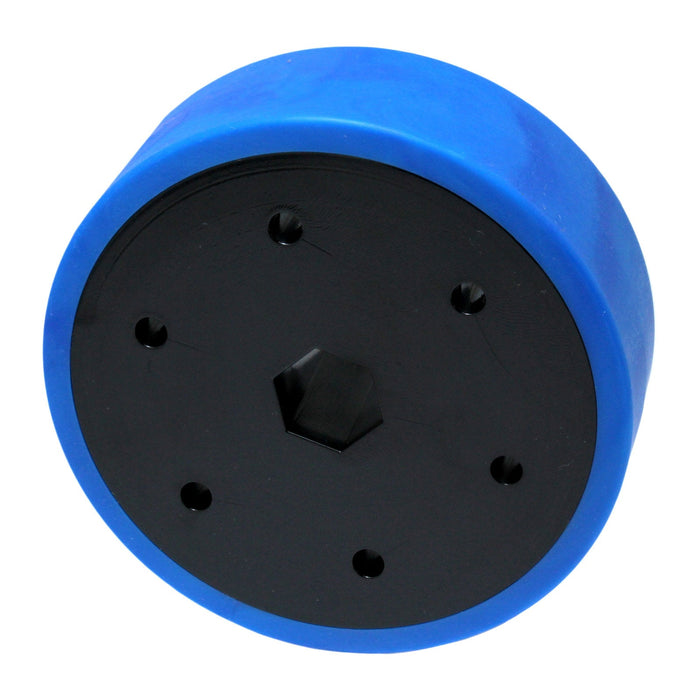

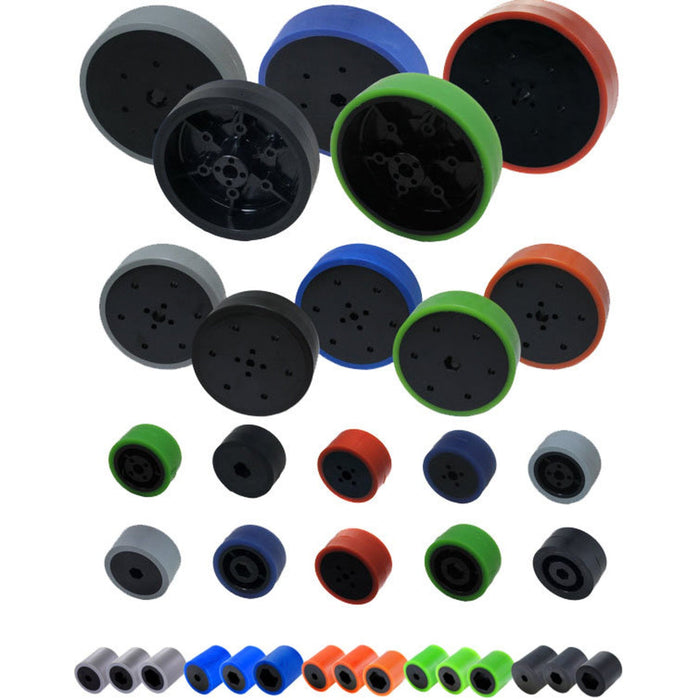

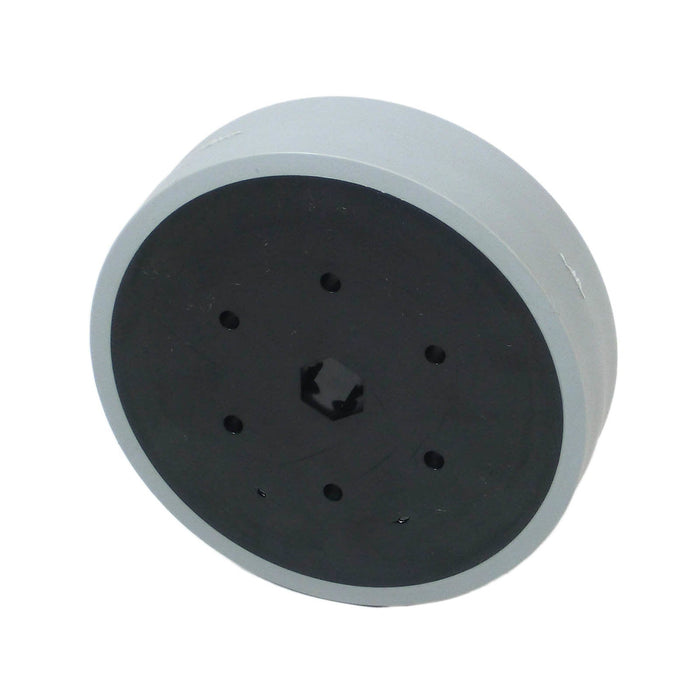

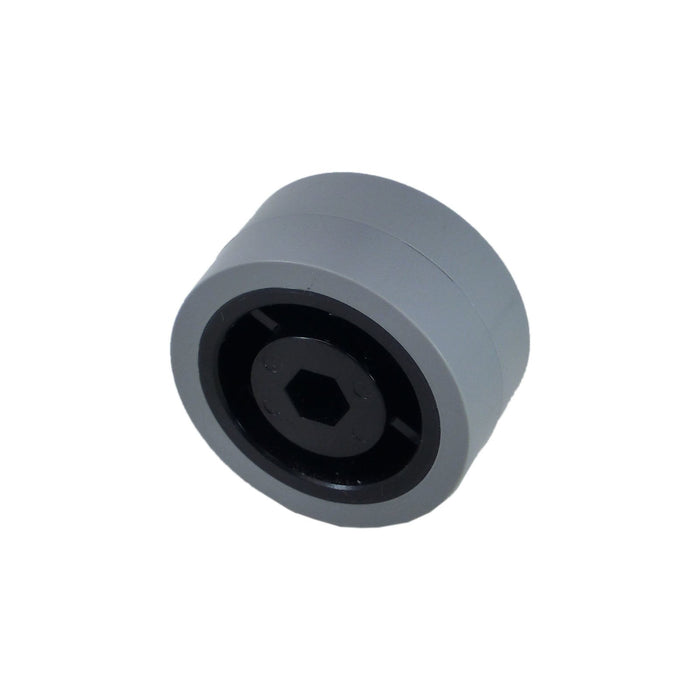

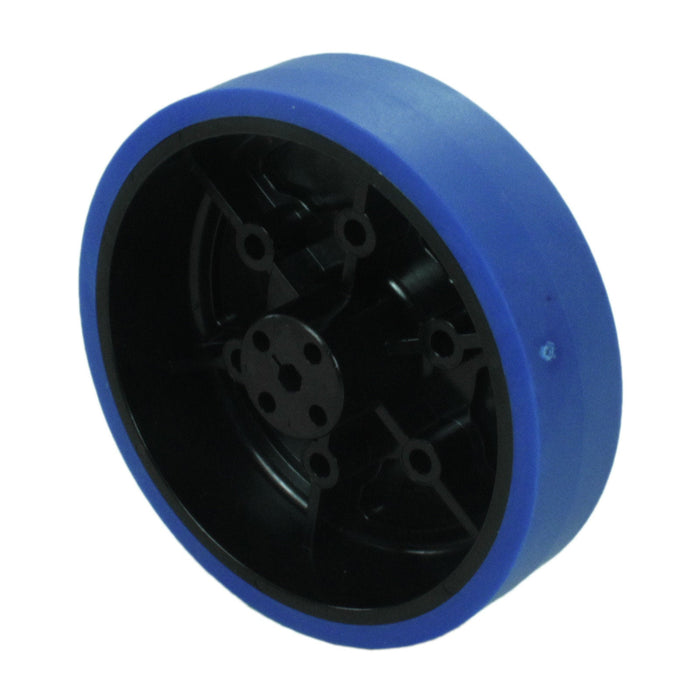

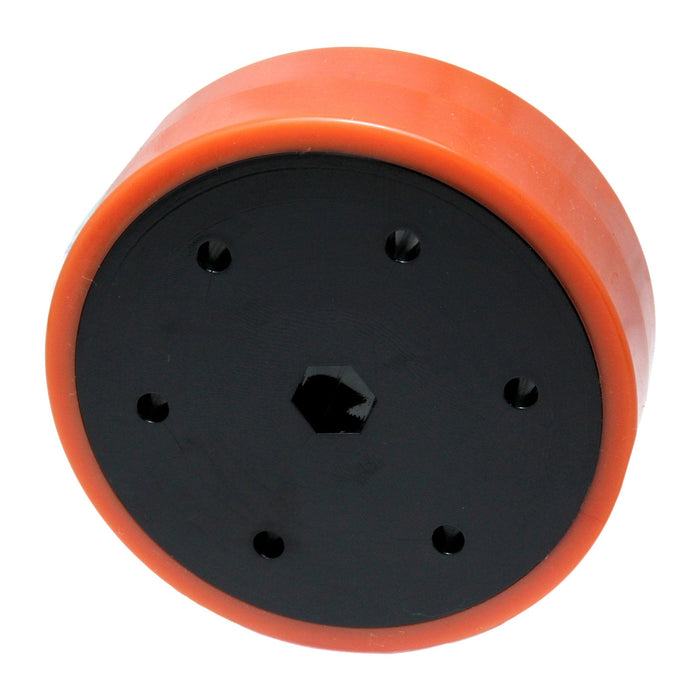

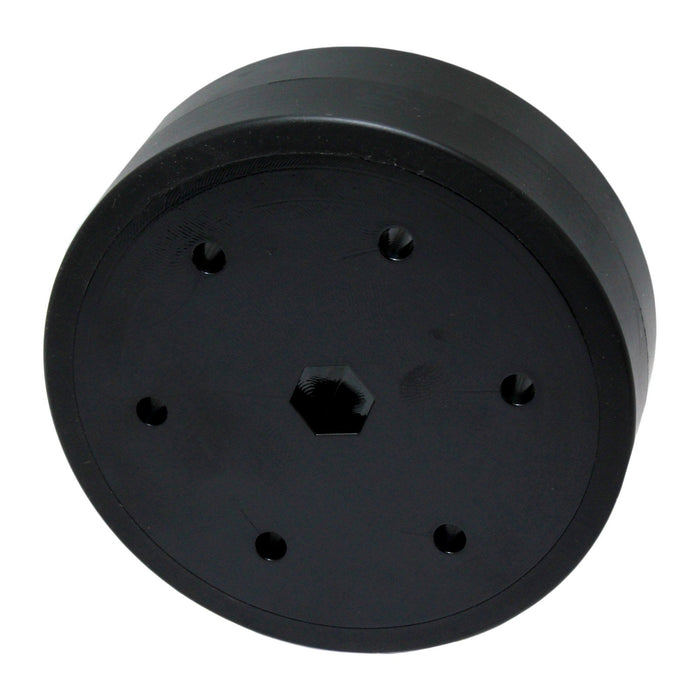

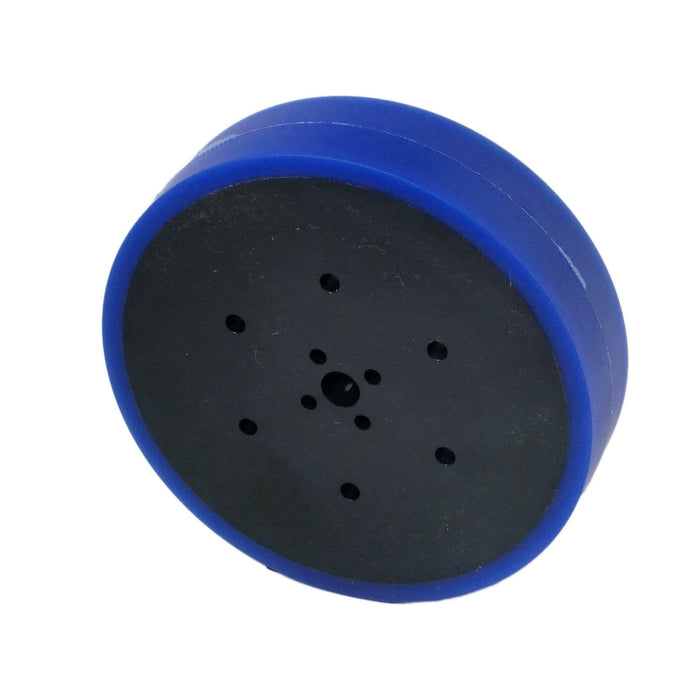

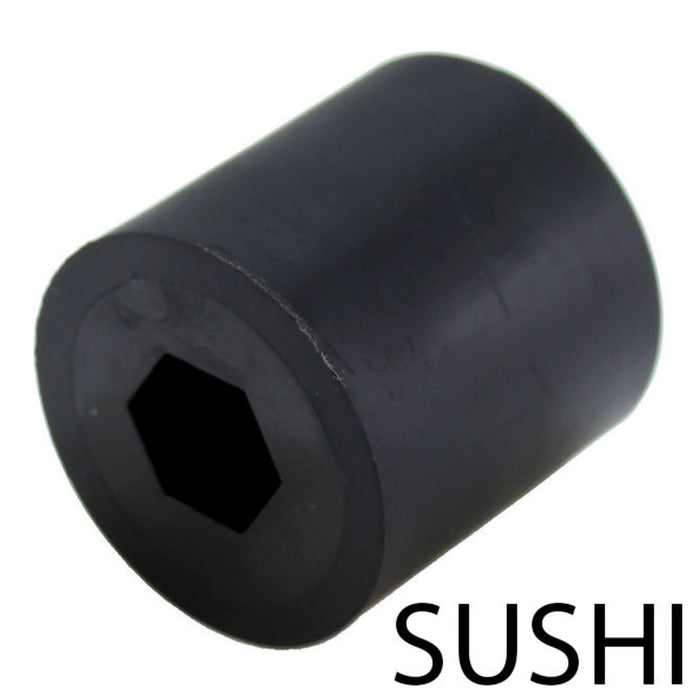

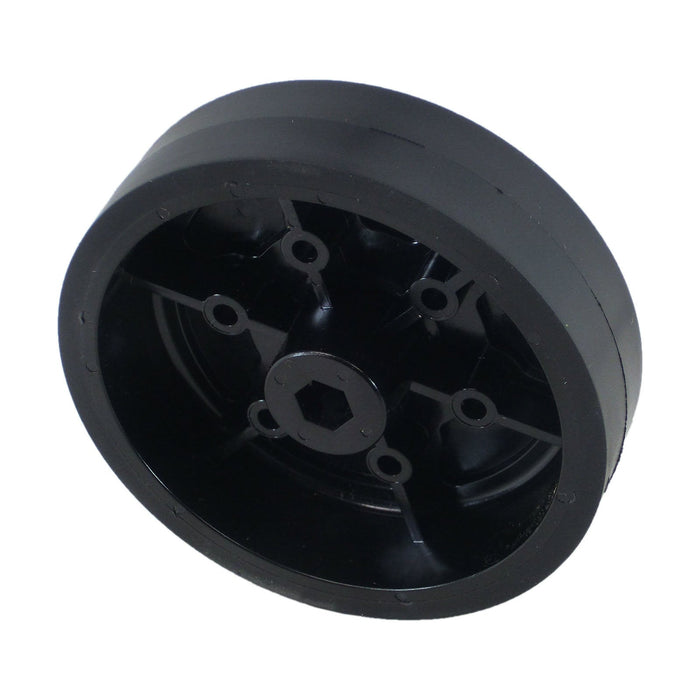

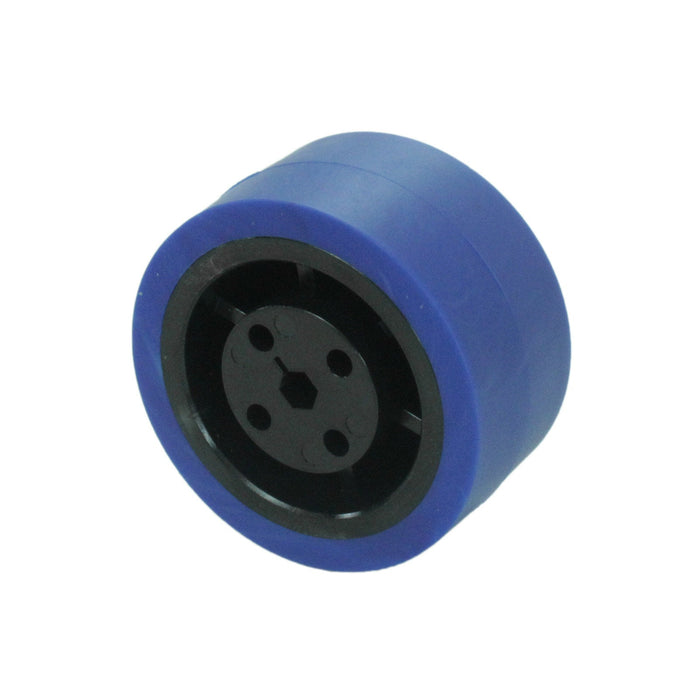

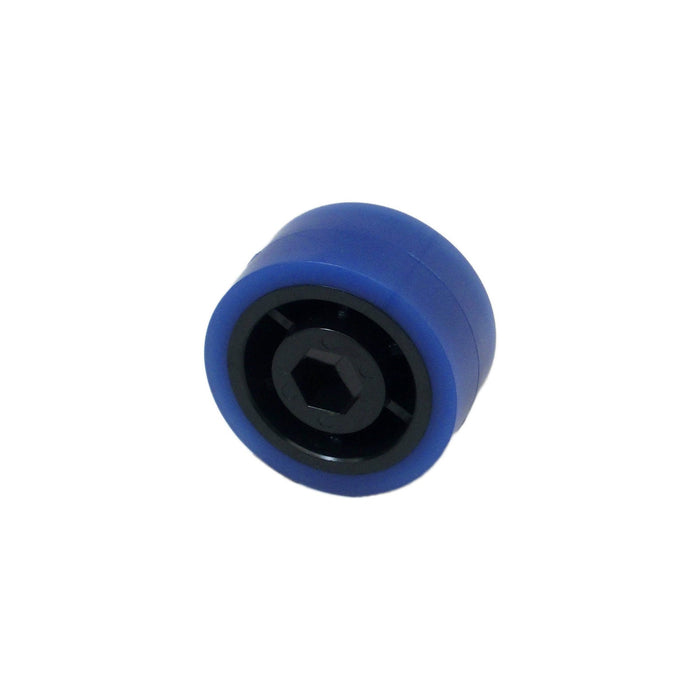

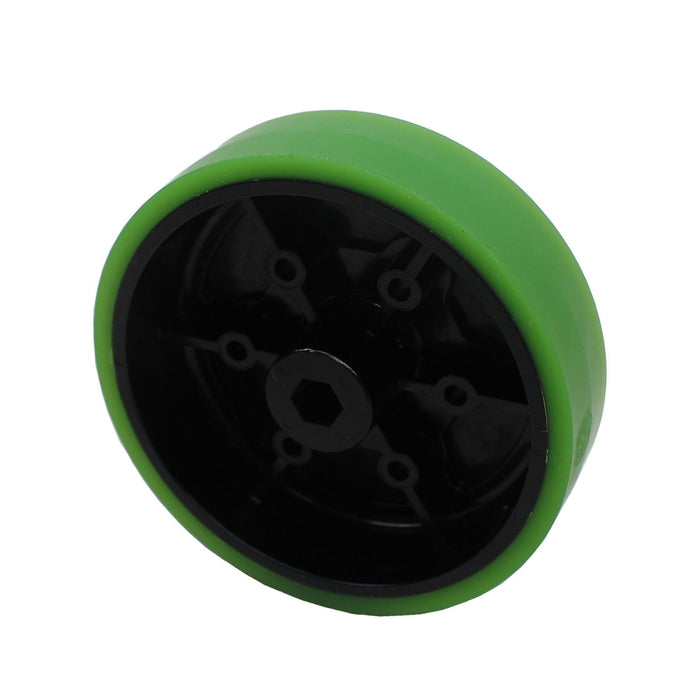

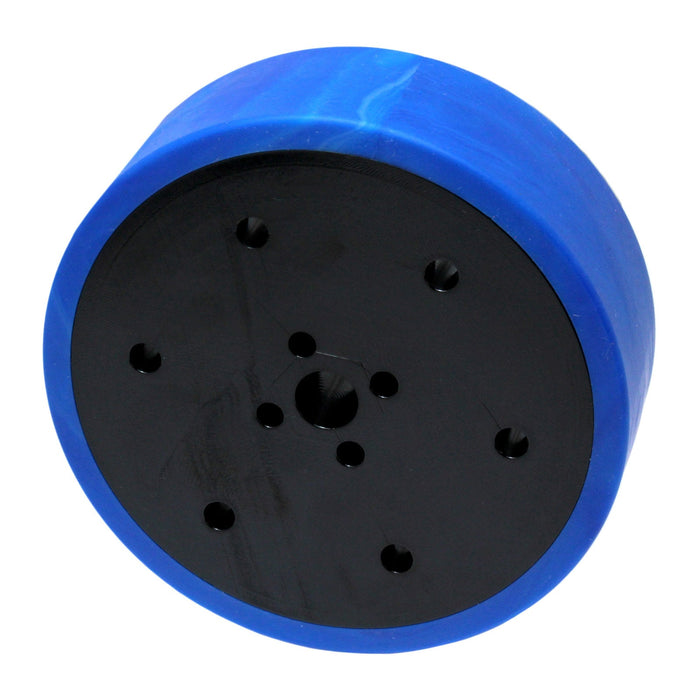

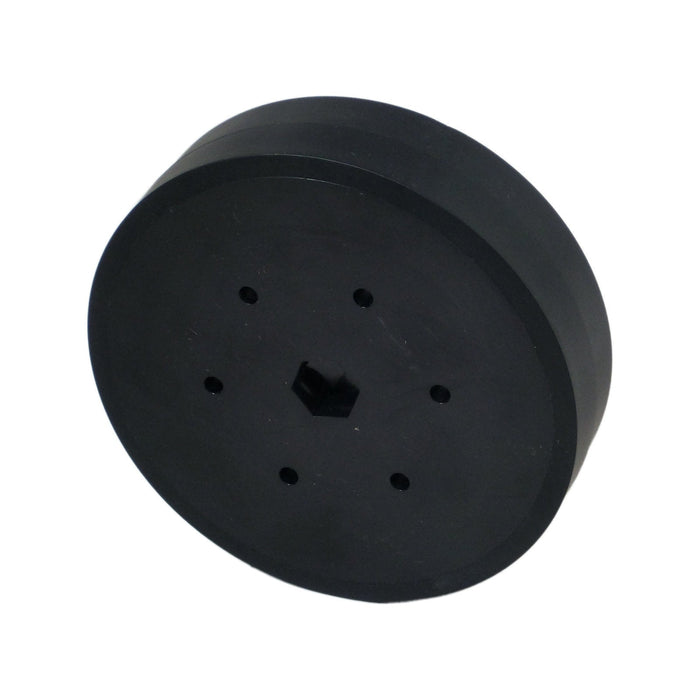

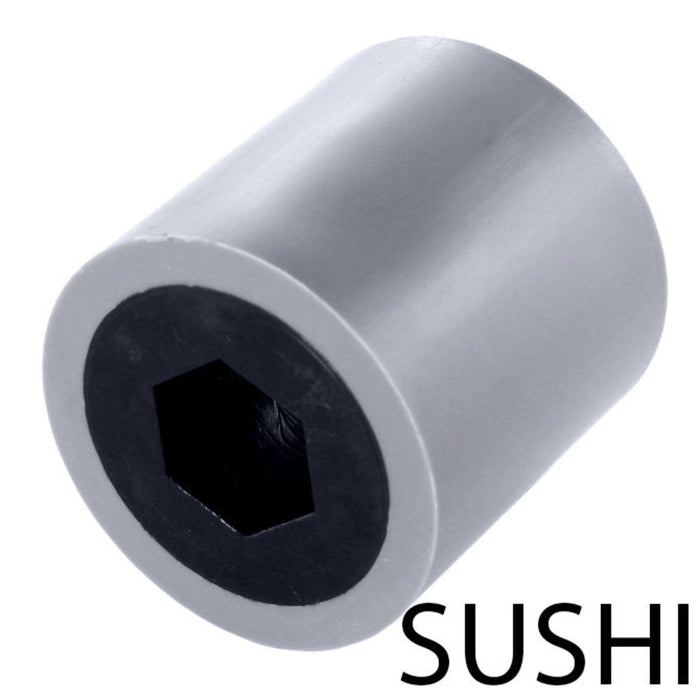

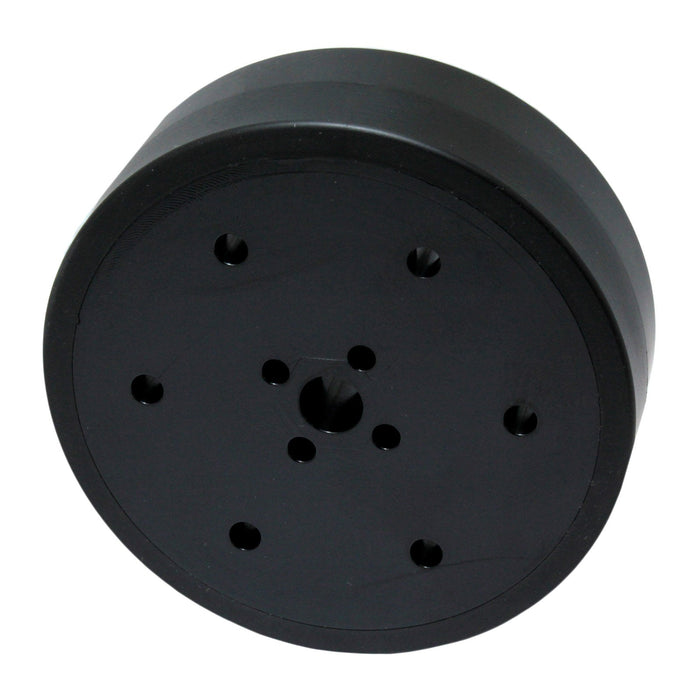

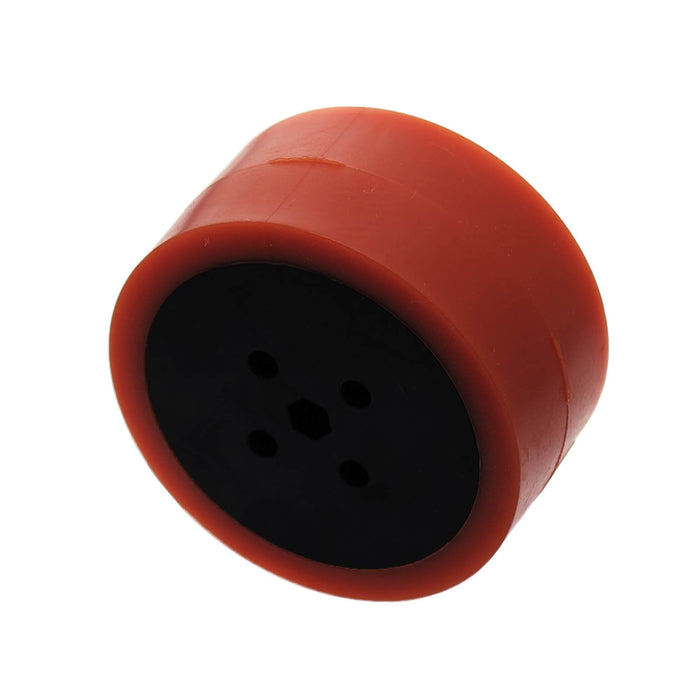

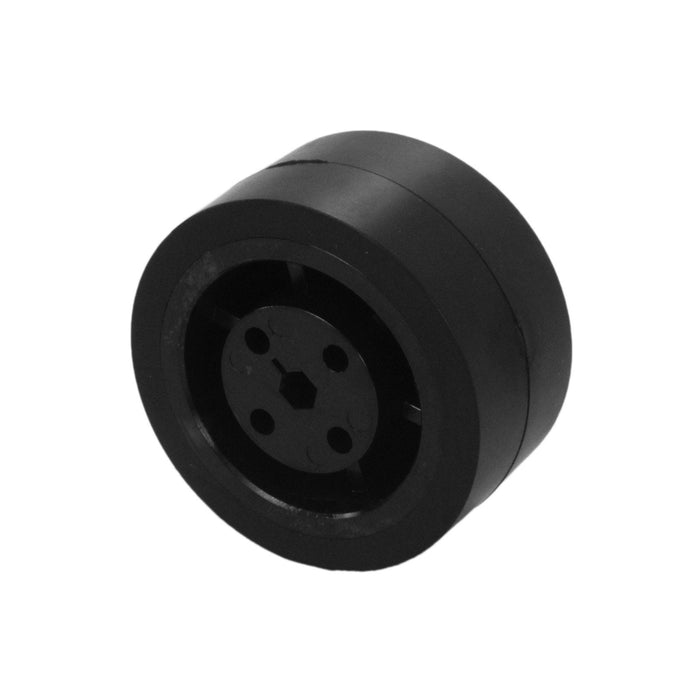

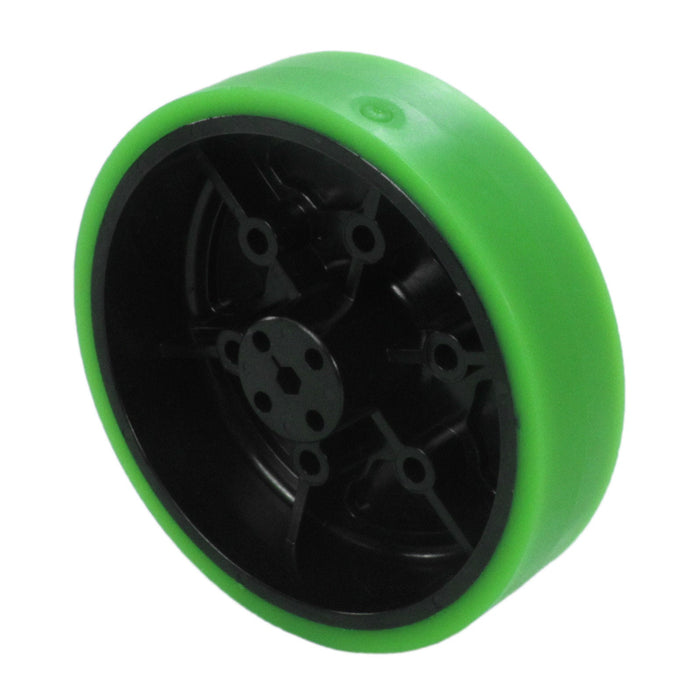

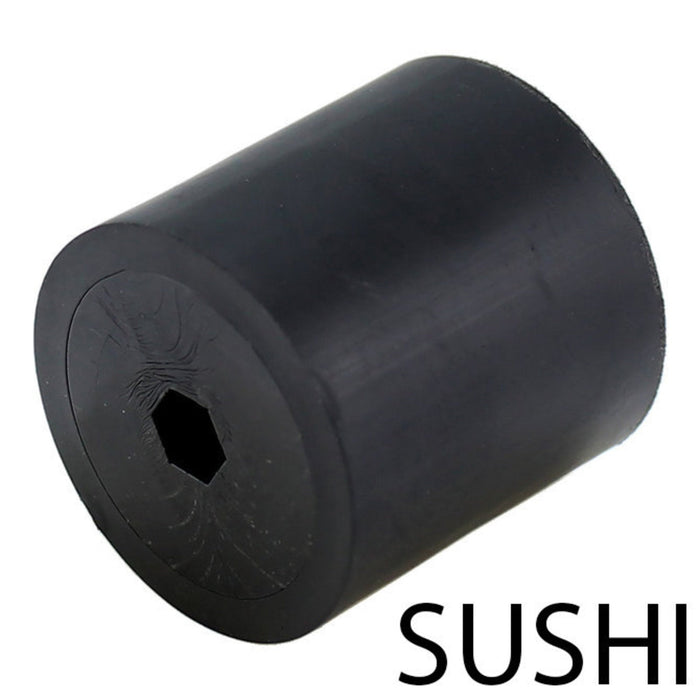

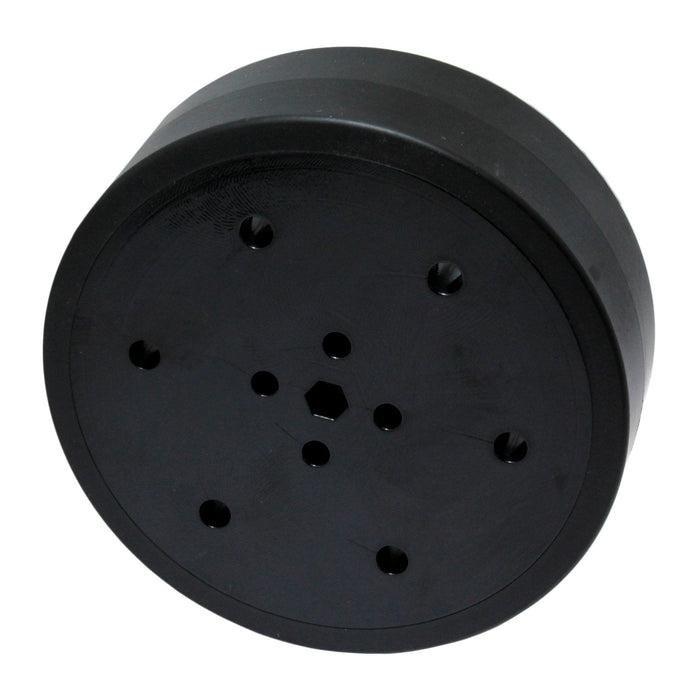

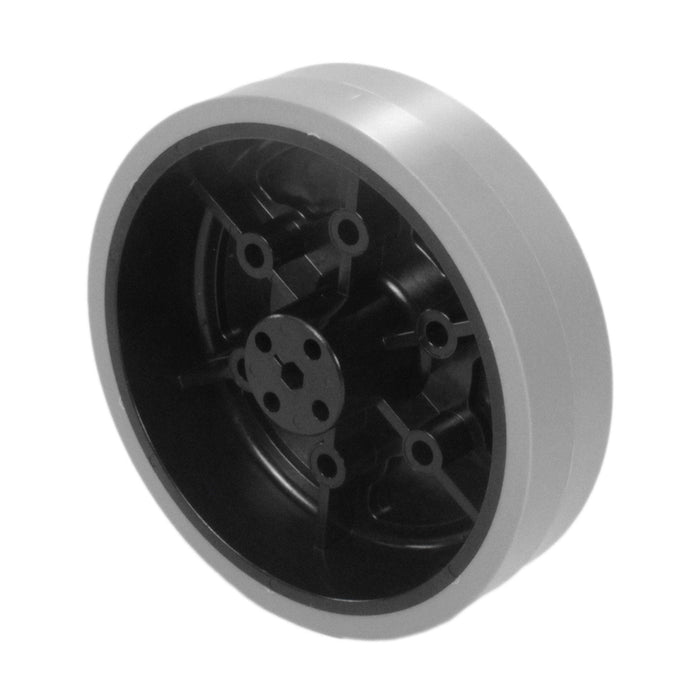

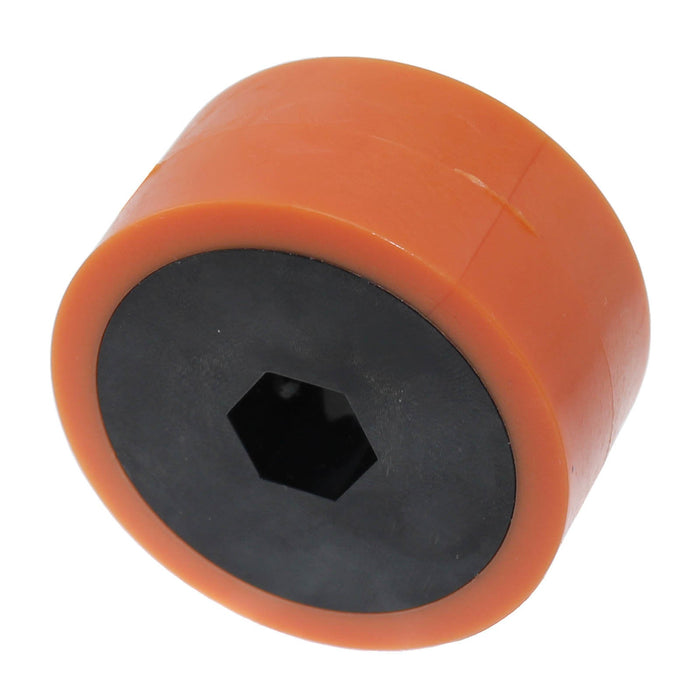

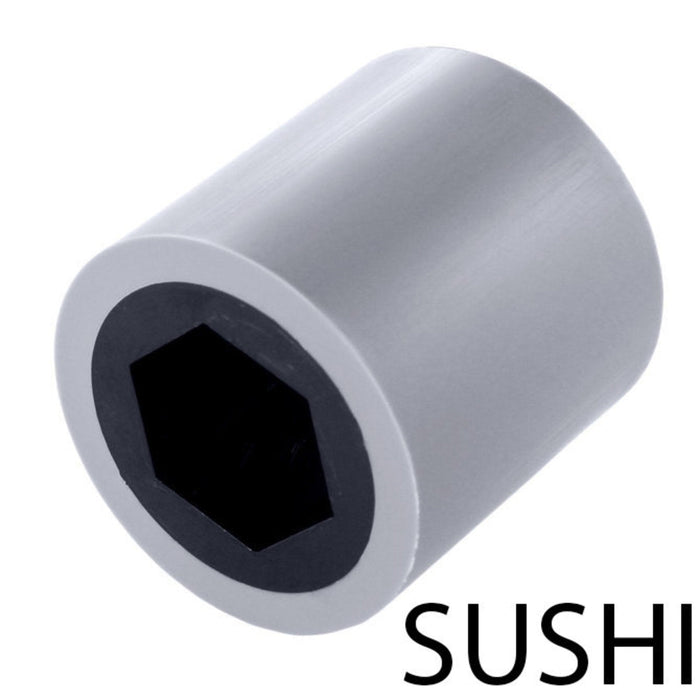

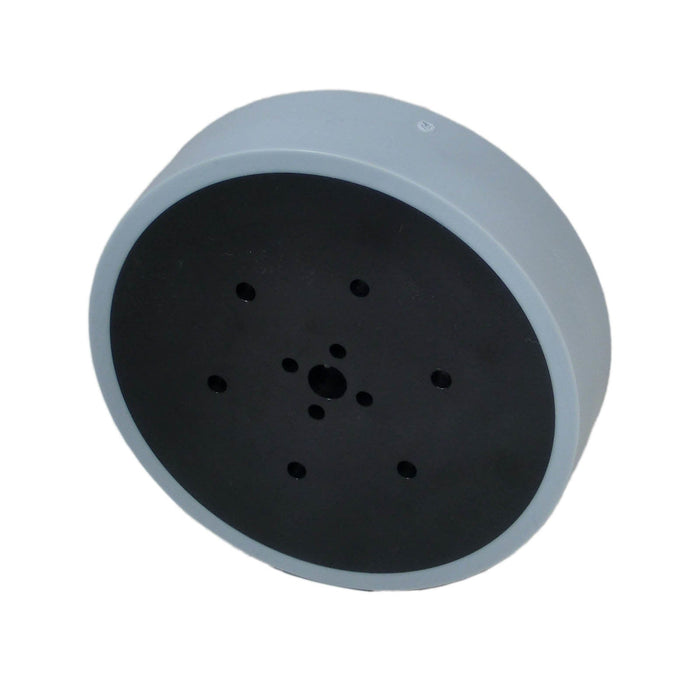

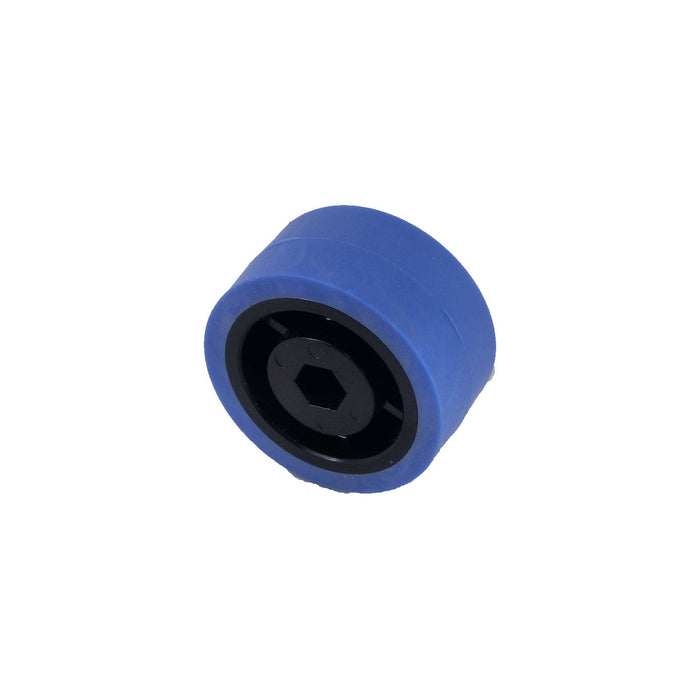

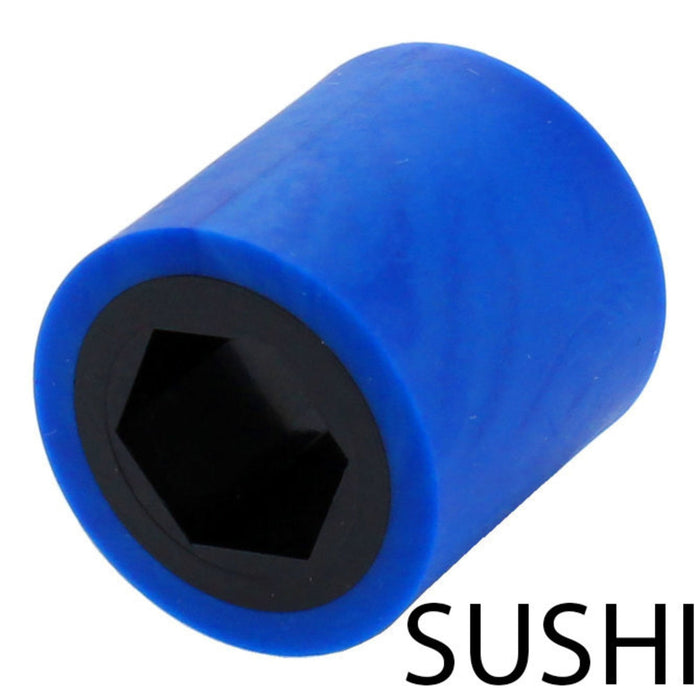

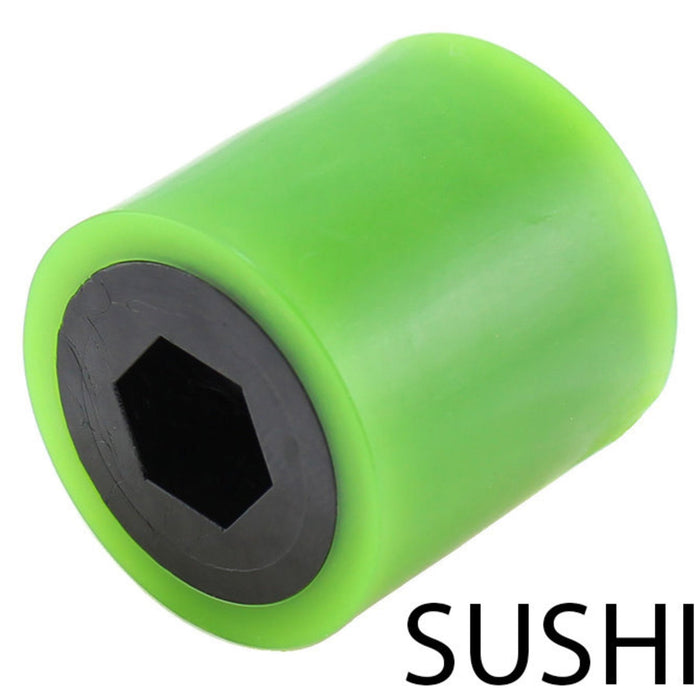

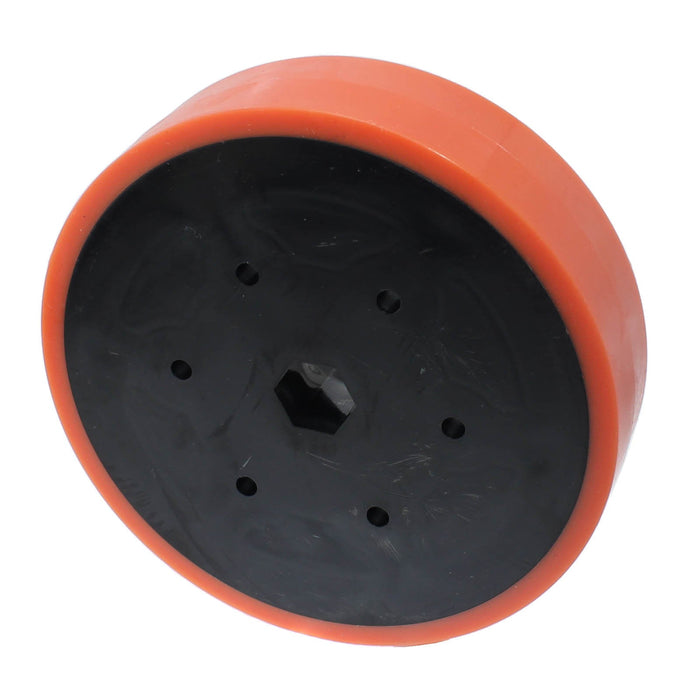

The inside black portion of these wheels are made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, and both Stealth and Sushi rollers are great for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 3 in. and 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.
- Bore: 0.500 in. [12.7 mm] (1/2) Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
- Diameter: 1 in., 2 in., 3 in., 4 in.
- Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black), 80A (Gray)
- Hole Pattern: 6 holes (0.159 in.) on a 1.875 in. bolt circle, Qty 4 3.5 mm Holes on a 16 mm Circle
- Material: TPU, Polycarbonate
- Weight: 0.03 lbs., 0.1 lbs., 0.17 lbs., 0.3 lbs.
- Width: 1 in.
CAD Files
am-4719 3in Stealth Wheel 5mm Hex Bore.STEP
am-4718 3in Stealth Wheel 375 Hex Hub.STEP
am-4717 3in Stealth Wheel Nub Bore.STEP
am-4716 3in Stealth Wheel 500 Hex Bore.STEP
am-4592 Sushi Roller 5mm Hex Bore.STEP
am-4590 Sushi Roller 375 Hex Bore.STEP
am-4541 Sushi Roller 500 Hex Bore.STEP
am-3156 2IN Stealth Wheel 8mm Nub Bore.STEP
am-3155 2in 500Hex Stealth Wheel REV2.STEP
am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP
am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP
am-3436 2in 375Hex Bore Stealth Wheel REV2.STEP
am-3436 2IN 375Hex Stealth Wheel REV2.STEP
am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP
am-2648 4inWheel 8mm Hub REV2.STEP
am-2647 4inWheel 500 Hex REV2.STEP
Layout Prints
am-4719 3in Stealth Wheel 5mm Hex Bore.pdf
am-4718 3in Stealth Wheel 375 Hex Bore.pdf
am-4717 3IN Stealth Wheel 8mm Nub Bore.pdf
am-4717 3in Stealth Wheel Nub Bore.pdf
am-4716 3in Stealth Wheel 500 Hex Bore.pdf
am-4592 Sushi Roller 5mm Hex Bore.pdf
am-4590 Sushi Roller 375 Hex Bore.pdf
am-4541 Sushi Roller 500 Hex Bore.PDF
am-3156 2IN 8mm Stealth Wheel REV3.PDF
am-3156 2IN Stealth Wheel 8mm Nub Bore.pdf
am-3156 2IN 8mm Stealth Wheel.pdf
am-3156 2IN Stealth Wheel 8mm Bore.PDF
am-3155 2in 500Hex Stealth Wheel REV3.PDF
am-3665 4in 5mm Hex Stealth Wheel REV3.PDF
am-3665 4in Stealth Wheel 5mm Hex Hub REV2.PDF
am-3665 4in Stealth Wheel 5mm Hex Hub REV3.PDF
am-3664 2in 5mm Hex Stealth Wheel REV4.PDF
am-3664 2in Wheel Intergrated 5mm HEX REV2.PDF
am-3436 2in 375Hex Stealth Wheel REV3.PDF
am-3435 4in 375Hex Stealth Wheel REV3.PDF
am-2648 4IN 8mm Stealth Wheel REV5.PDF
am-2648 4IN Stealth Wheel 8mm Nub Bore.pdf
am-2648 4IN Stealth Wheel 8mm Round Bore REV4.PDF
am-2648 4IN Stealth Wheel 8mm Round Bore REV5.PDF
am-2647 4in 500Hex Stealth Wheel REV3.PDF
