Rover Chassis Drive Rail - am-4094 - migrated

Rover Chassis Drive Rail

by AndyMark

Save 50%

$17.50 USD

$17.50 USD - $17.50 USD

$17.50 USD

$8.75 USD

$8.75 USD - $8.75 USD

$8.75 USD

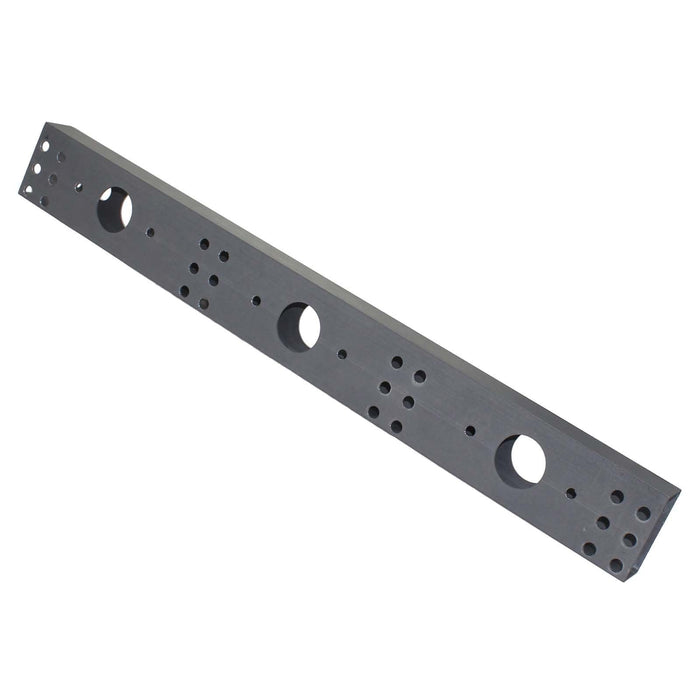

This 2 in.x1"x0.063" box tube is the Drive Rail for the Rover Chassis.

Description
Specifications
Documentation

This 2 in.x1"x0.063" box tube is the Drive Rail for the Rover Chassis. This rail has holes to accommodate Sport Gearboxes when using the Sport Gearbox Facemount Plate at either end or in the middle, and features a dropped center for six-wheel drive options. It is intended to be run in a "West Coast Drive" configuration with the wheel cantilevered on the outside and the chain inside the tube using our 17T double sprocket. There are four locations to attach Walnut Extrusion to create a robust chassis frame.
- Height: 2.0 in.
- Length: 17.875 in.
- Material: 6061-T6 Aluminum
- Wall Thickness: 0.063 in.
- Width: 1.0 in.
CAD Files
am-4094 Rover Drive Rail.STEP
Layout Prints
am-4094 Rover Drive Rail.PDF

Not Returnable

This product is not eligible for returns. All sales are final.
