Robits Drop Block

Robits Drop Block

by AndyMark

$11.20 USD - $11.20 USD

$11.20 USD

$11.20 USD

$11.20 USD - $11.20 USD

$11.20 USD

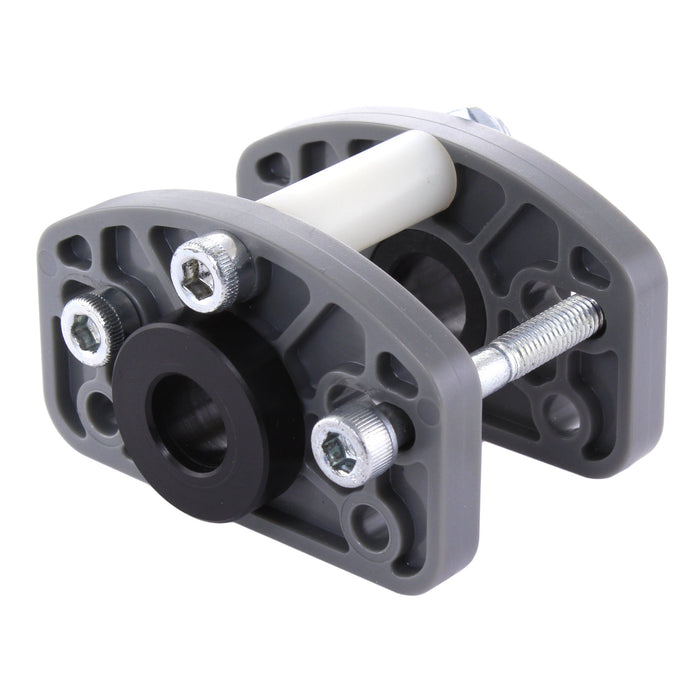

The Robits Drop Block is a great option to lower (or raise) a Robits Shaft on a 1 inch tube.

Description
What's in the Box?
Specifications
Documentation

The Robits Drop Block is a great option to lower (or raise) a Robits Shaft on a 1 inch tube. Adding a drop greatly helps a 6 or 8 wheel drivetrain turn without scrub.

The slot features can additionally be used to help tension a belt or chain.
Included Items:
- 2 - Robits Drop Mount Bracket (am-5019)
- 2 - 0.425 in. ID 0.688 in. OD Robits Flanged Bushing for 0.375 in. Hex Shaft(am-5021)
- 1 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
- 3 - 10-32 x 2 in. Socket Head Cap Screw (am-1049)
- 3 - 10-32 Nylock Jam Nut (am-1063)
- Compatible Shaft: 0.375 in. Hex
- Drop Distance: 0.067 in.
CAD Files
am-5028 Robits Drop Block (Fixed Fasteners).STEP
am-5028 Robits Drop Block (Slotted Fasteners).STEP
Layout Prints
am-5028 Robits Drop Block.pdf
