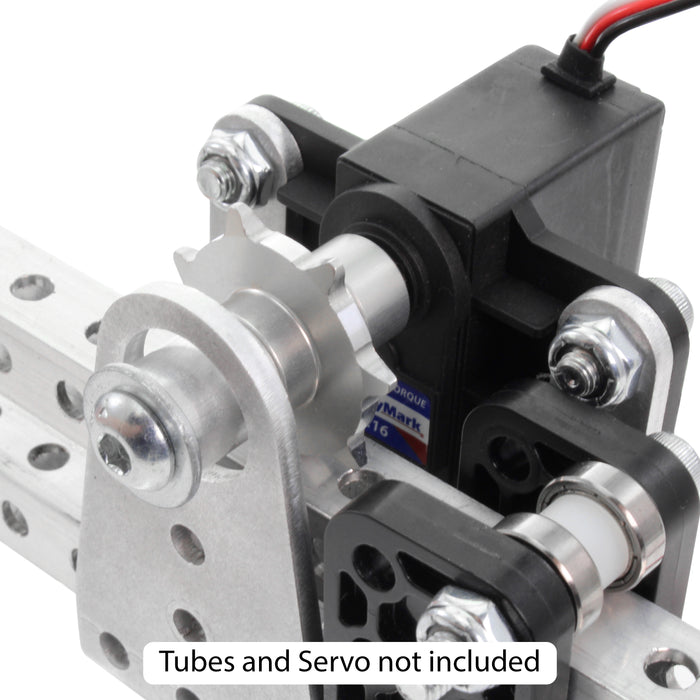

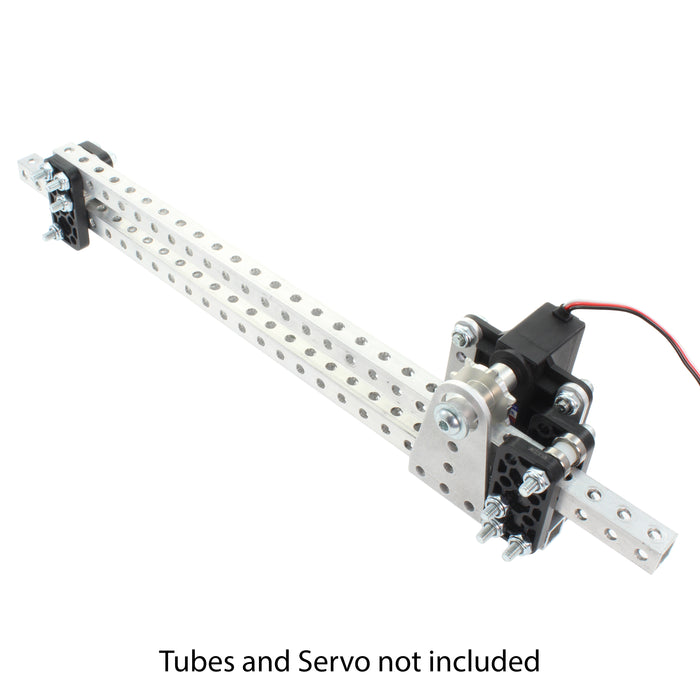

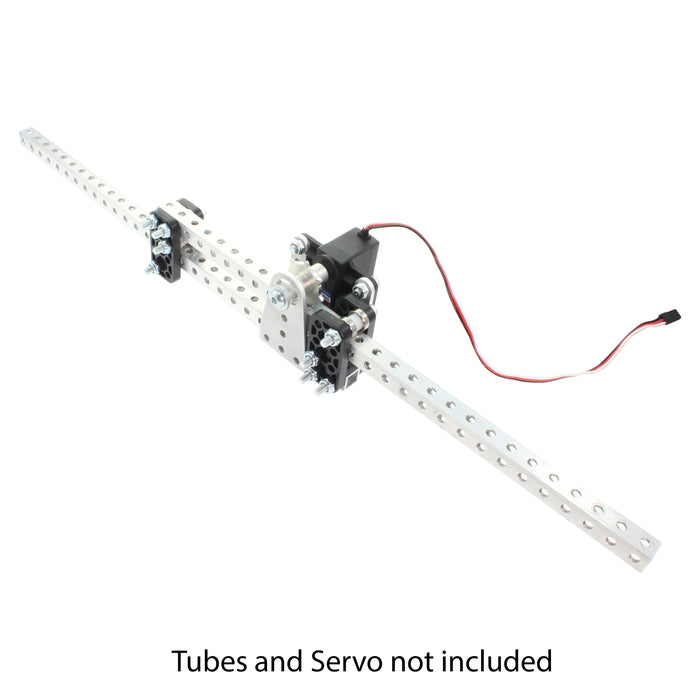

This kit uses the same concept as a rack and pinion system to turn a rotary action into a linear one. The cog teeth interface with the holes in the tube to create a reliable power transfer that is both simple and effective. This kit can be configured in multiple ways utilizing either a servo or a motor for extension and retraction. Using the included bushing, this kit can be paired up with multiple Cog Drive Kits and powered from the same shaft.
**Note** The following components are NOT included with this kit.
-

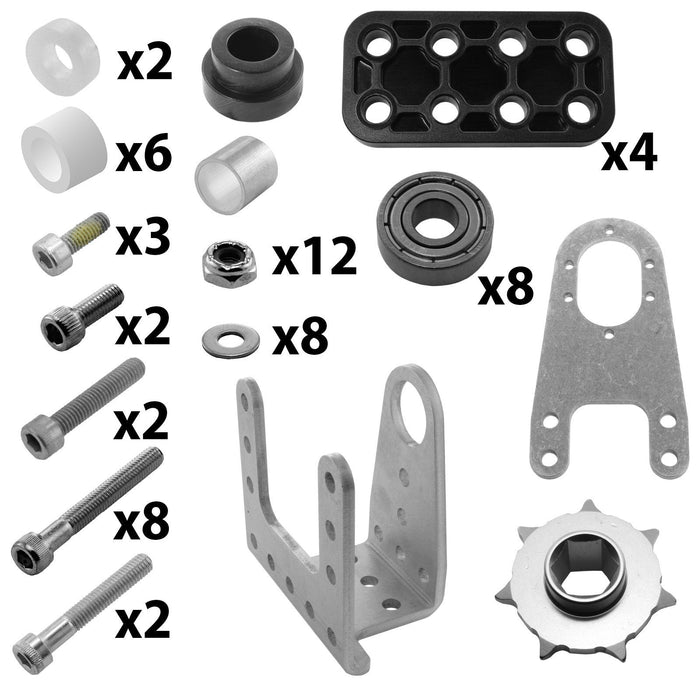

Included Items:
- 1 - Robits Cog Drive Servo Bracket (am-5041)
- 2 - 10-32 x 0.5 in. Socket Head Cap Screw (am-1002)
- 2 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
- 2 - 10-32 x 1.25 in. Socket Head Cap Screw (am-1041)
- 8 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
- 12 - 10-32 Nylock Jam Nut (am-1063)
- 4 - 2 x 4 Robits Plate Gusset (am-5006_2x4)
- 8 - #10 Flat Washer (am-1026)
- 8 - 5 mm ID 13 mm OD Shielded Bearing (695ZZ) (am-4724)
- 2 - 0.194 in. ID x 0.375 in. OD x 0.125 in. Long Nylon Spacer (am-1732)
- 6 - 0.194 in. ID x 0.375 in. OD x 0.250 in. Long Nylon Spacer (am-1700)
- 1 - 0.425 in. ID x 0.688 in. OD Robits Flanged Bushing for 0.375 in. Hex Shaft (am-5021)
- 1 - Robits 7 Tooth 3/8 Hex Bore Cog (am-5472)
- 1 - 80T or 100T Motor Mount Robits Mounting Bracket (am-5017)
- 1 - 0.430 in. ID 0.500 in. OD 0.500 in. Long Aluminum Spacer (am-1699)
- 3 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
-
Guides
am-5519 ROBITS Cog Drive Assembly Guide.pdf
Layout Prints
am-5519 Robits Cog Drive Assembly.pdf
CAD Files
am-5519 Robits Cog Drive CAD.zip
am-5519 Robits Cog Drive Assembly (Bearing Assembly).STEP
am-5519 Robits Cog Drive Assembly (Bushing).STEP
am-5519 Robits Cog Drive Assembly (Motor).STEP
am-5519 Robits Cog Drive Assembly (Servo).STEP
