Line Follower

Name: Line Follower
Brand: AndyMark
SKU: am-4730
Price: 1.85 USD
Availability: InStock

by AndyMark

Save up to 50%

$3.70 USD - $22.00 USD

$3.70 USD

$1.85 USD - $11.00 USD

$1.85 USD

This sensor is designed to help a robot sense and follow a line.

Quantity

SKU

This Line Follower is used in the Skitter Robot. It is a reflectance sensor array with sensors spaced at intervals of 0.375 in. along the board’s longer axis. This is designed to work with line following courses made from 3/4 in. black electrical tape.

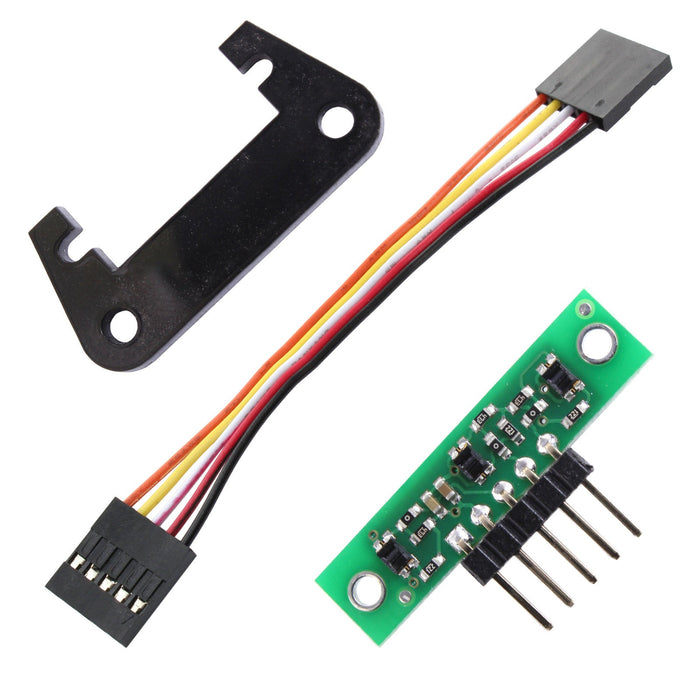

Included Hardware in am-4856b:

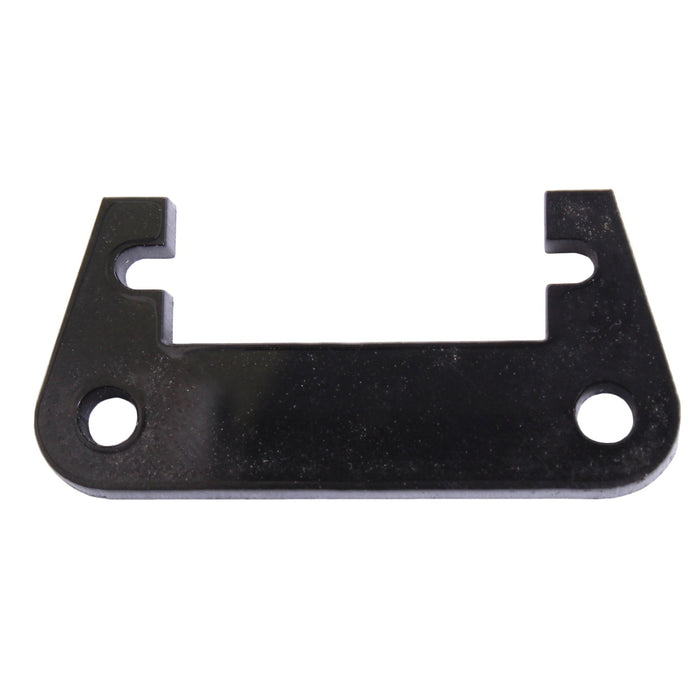

- 1 - Skitter Line Follower Sensor Bracket (am-4730)

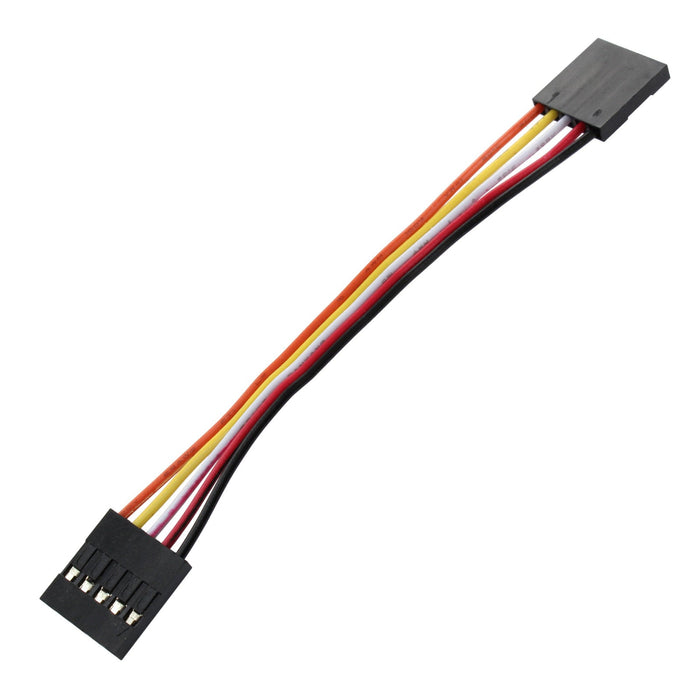

- 1 - Skitter Line Follower Sensor Cable Spring 2024 (am-4818a)

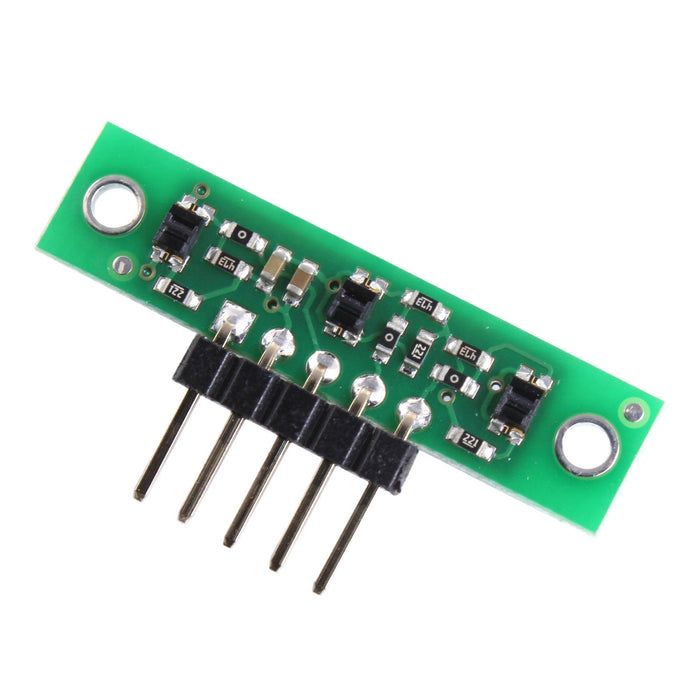

- 1 - Skitter Line Follower w/Header (am-4857)
- Maximum Recommended Sensing Distance: 0.25 in. [6 mm]
- Operating Voltage: 5.0 V
- Optimal Sensing Distance: 0.125 in. [3 mm]
- Output Format: 3 analog voltages
- Output Voltage Range: 0 V to supplied voltage
- Supply Current: 50 mA
CAD Files
am-4730 Pololu Line Follower Sensor Bracket.STEP
Layout Prints
am-4818a Cable, Sensor, Line Follower, Skitter Spring 2024.pdf
am-4730 Pololu Line Follower Sensor Bracket.pdf
