Flyer Gearbox Plate - am-4216 - migrated

Flyer Gearbox Plate

by AndyMark

$19.00 USD - $19.00 USD

$19.00 USD

$19.00 USD - $19.00 USD

$19.00 USD

These are the outside plates for the Flyer Overdrive Gearbox.

Description
Specifications
Documentation

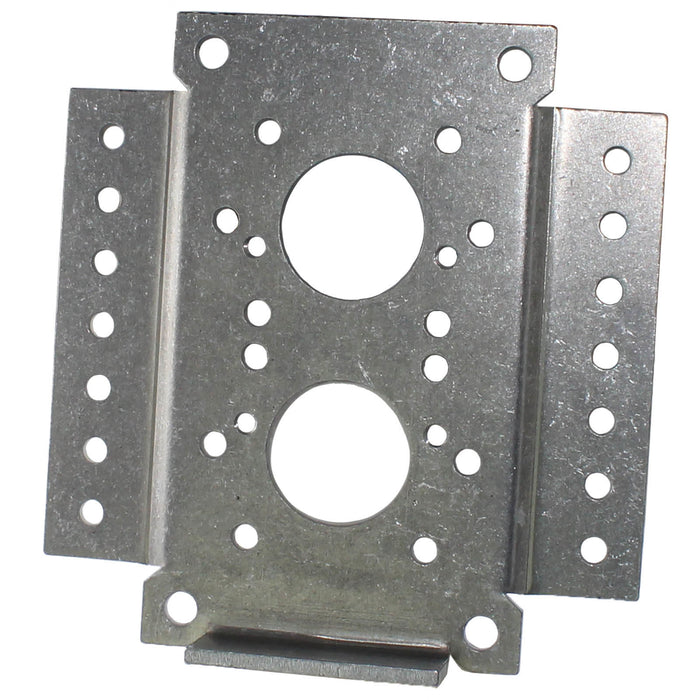

Two of these plates attached together with some spacers make the enclosure and mounting for the Flyer Overdrive Gearbox. The bearing holes in the plate are placed 1.753 inches apart for a 70 tooth 20 DP gear pair spacing.
- Depth: 1.00 in.
- Hegith: 5.00 in.
- Hole Pattern: Qty 14 - 0.201 in. holes on 0.50 in. spacing
- Material: 5052 Aluminum
- Width: 4.75 in.
CAD Files
am-4216 Flyer Gearbox Plate.STEP
Layout Prints
am-4216 Flyer Gearbox Plate REV2.PDF
am-4216 Flyer Gearbox Plate.PDF
