AM14U Family NEO Brushless Upgrade Kit

by AndyMark

$750.00 USD - $750.00 USD

$750.00 USD

$750.00 USD - $750.00 USD

$750.00 USD

Description
Specifications
Documentation

The award-winning, best in its class chassis can now have your favorite brushless motors attached, providing unbridled speed and torque. This upgrade kit contains four NEO V1.1 brushless motors, Spark MAX motor controllers, and all the hardware needed. Remove the existing motors and ToughBox Mini housing from the AM14U4 chassis and replace them with these components.

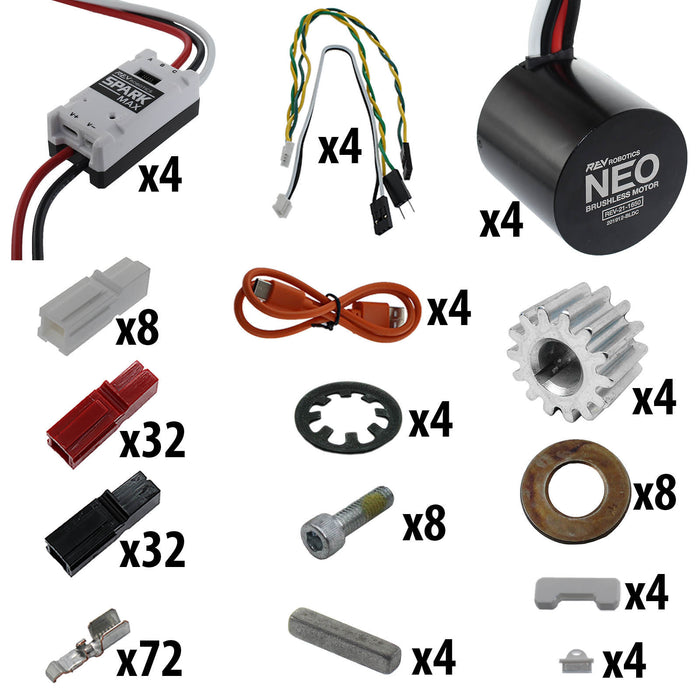

Individual Components within Bundle:
- 4 - Spark MAX Speed Controller Basics Control Bundle (am-4265)
- 4 - NEO Brushless DC Motor V1.1 (am-4258a)
- 4 - 8 mm Push On Retaining Ring (am-0033)
- 4 - 14 Tooth 20DP 8 mm Round with 2 mm Key Steel CIM Gear (am-0034)
- 4 - 2 mm x 10 mm Machine Key Steel (am-1121)
- 8 - 5/16 in. Flat Washer (am-1009)
- 8 - 10-32 x 5/8 in. Socket Head Cap Screw with Thread Lock Patch (am-1120)
Layout Prints
am-14U4 8WD AM14U4 8 Wheel Drive Kit.PDF
AM-14U4 DU6 Layout.PDF
AM-14U4 FHK Motor Layout.PDF
AM-14U4 FROXL Extra Large Frame Opening Kit.PDF
AM-14U4 MK6.PDF
AM-14U4 MK8 8in MK Mecanum Wheel Upgrade Kit.PDF
AM-14U4 PN6 Layout.PDF
AM-14U4 PN8 Layout.PDF
AM-14U4 PN8_HD Layout REV2.PDF
AM-14U4 PW48XL Layout.PDF
AM-14U4 PW68 Layout.pdf
am-14U Belt Sizing.PDF
CAD Files
am-14U4 MK4.STEP
am-14U4 MK6.STEP
am-14U4 MK8.STEP
am-14U4 PN8.STEP
am-14U4 PN8HD.STEP
AM-14U4 Long.STEP
AM-14U4 Square.STEP
AM-14U4 Wide.STEP
Guides
am-14U4 EVO Gearbox onto AM-14U4.pdf
am-14U4 EVO Shifter onto AM-14U4.pdf
am-14U4 Sonic Shifter onto AM-14U4.pdf
am-14U4_EMK EVO Gearbox onto AM-14U Family.pdf
AM-14U4 Battery Tray Attachment.pdf
AM-14U4 FHK Motor Layout.PDF
AM-14U4 UserGuide_2020.pdf
AM-14U4 AM-14U5 Mecanum Upgrade Assembly Directions.pdf
